VBS® CONCENTRATORS

GRAVITY CONCENTRATORS, VIBRATING SLUICES, GOLD CONCENTRATORS

Over 25 years VBS® CONCENTRATORS have been supplied to all over the world and have been proven as the most efficient solution for recovery of fine particle sizes, down to 20 microns (0.020 mm.). Its exceptional design results in the highest rates of the recovery of fine particles of various mineral types, the recovery rates are over 95%.

Quality Designed

DOVE® VBS® Concentrators are manufactured with the highest quality material, and covered by One – Year Manufacturer Warranty Program.

Smooth and Easy to Operate

DOVE® VBS® Concentrators were designed for continuous operations, and require almost no operating attention. Do not require clean water, and can be operated, utilizing re-cycled water.

High Performance

DOVE® VBS® Concentrators offers exceptional efficiency in recovery of micron size particles, utilizing gravity separation principals.

FEATURES

  • VBS® Concentrators are equipped with regulated high – pressure spray-network through the whole perimeter of the working area, what allows to control water flow and pressure, and results in the highest rates of recovery.
  • VBS® Concentrators are equipped with security covers and locking mechanism in order to prevent the loss and theft of the production.

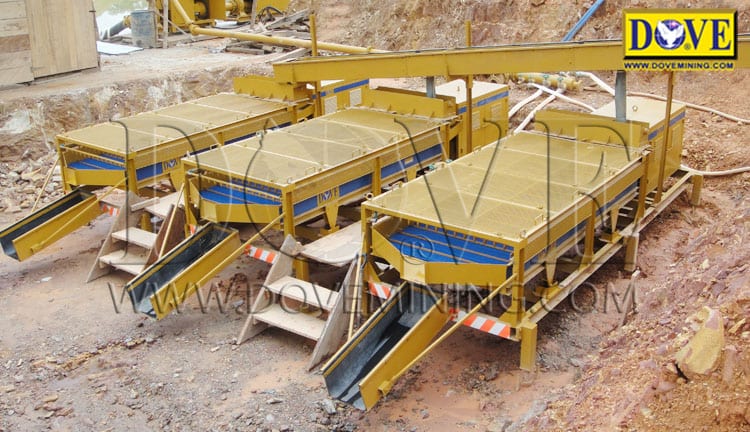

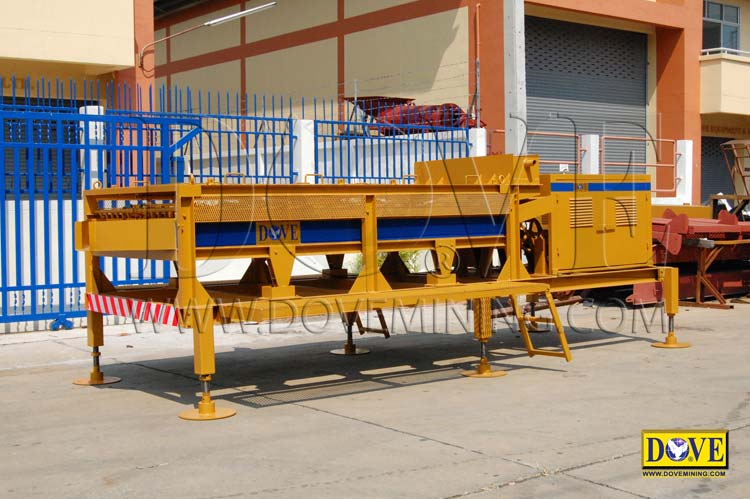

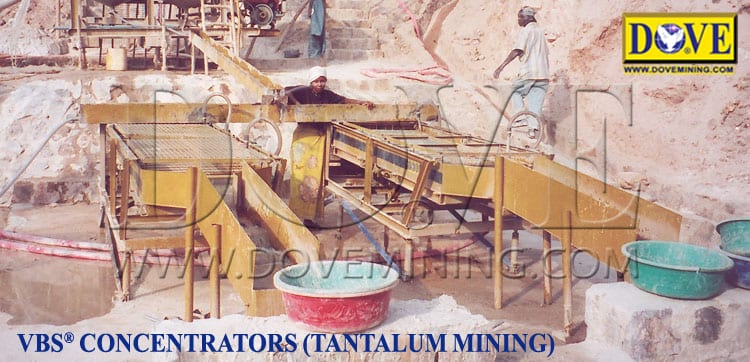

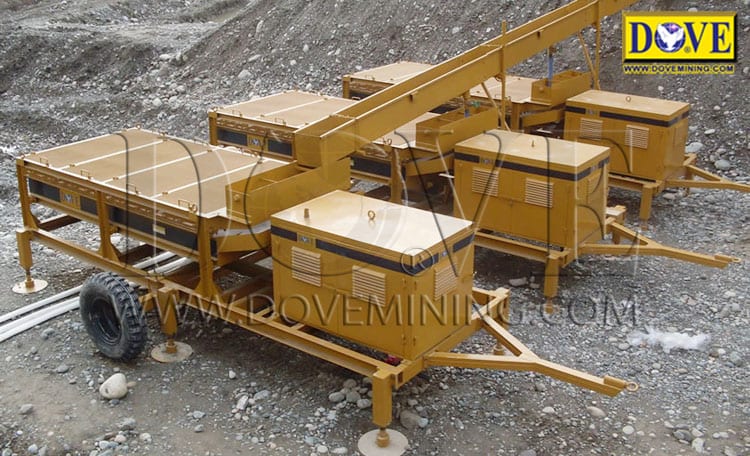

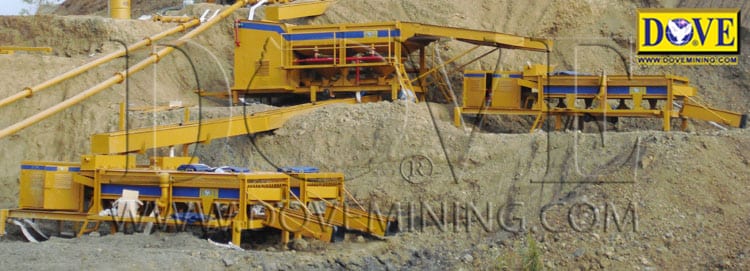

  • VBS® Concentrators are available in both stationary and portable configurations.
  • VBS® Concentrators are supplied either with electric motors or diesel engines, which are protected with the 3-ways excess door canopy.
  • Do not require clean water and can be operated with re-cycled, river or dirty water.

vbs-concentrators-DOVE-1

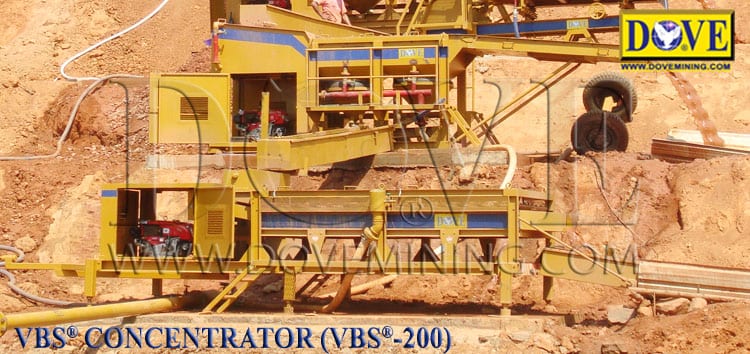

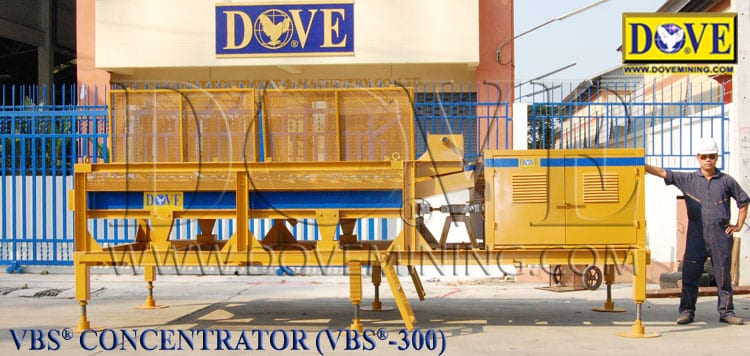

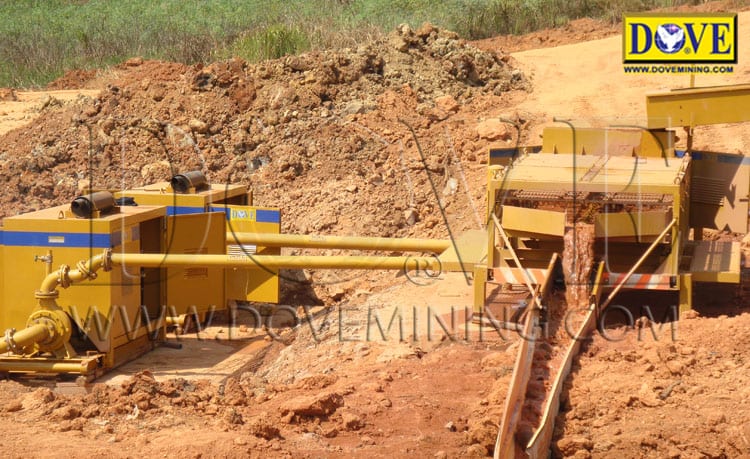

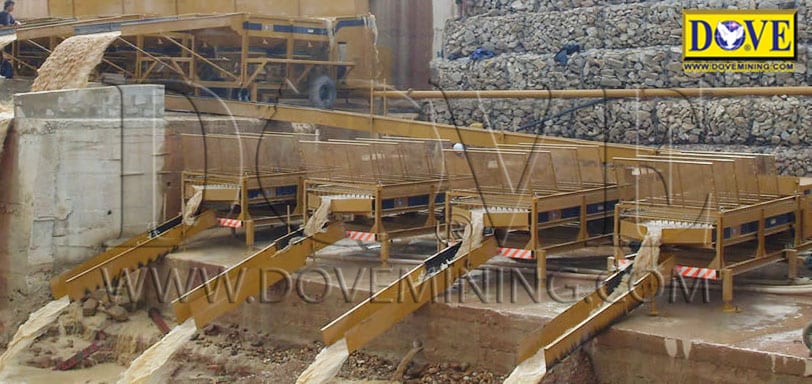

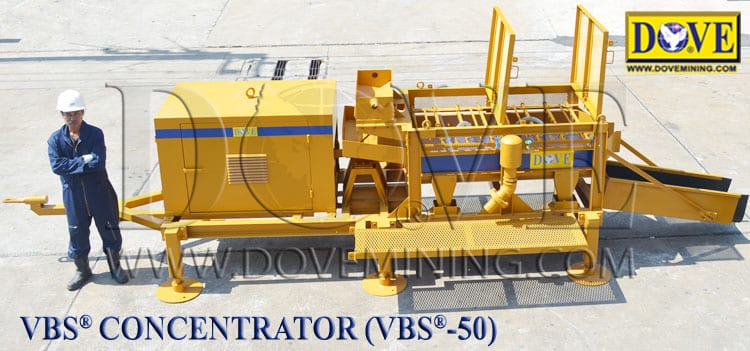

VBS® CONCENTRATORS – TECH SPECS

SPECIFICATIONSUNITMODELS
VBS – 50VBS – 100VBS – 200VBS – 300
PROCESSING CAPACITYSOLIDSTONS / HR2 – 44 – 66 – 88 – 10
m3 / HR1.2 – 2.32.3 – 3.53.5 – 4.64.6 – 5.9
yd³ / HR1.5 – 33 – 4.64.6 – 66 – 7.7
SLURRYm3 / HR6 – 1616 – 2424 – 3232 – 40
yd³ / HR7.8 – 2121 – 3131 – 4242 – 52
OPTIMUM RATIO (SLURRY MIX)SOLIDS / LIQUID1 / 3.01 / 3.01 / 3.01 / 3.0
EFFECTIVE FEED PARTICLE SIZEINCH-0.20-0.20-0.20-0.20
mm.-5-5-5-5
WATER REQUIREMENTSm3 / HR35 – 5060 – 7560 – 7560 – 75
DIESEL ENGINEMANUAL START

MAXIMUM OUTPUT

QTY (HP / kW)8.0 / 5.98.0 / 5.99.0 / 6.612.0 / 8.8

CONTINUOUS RATE

QTY (HP / kW)7.0 / 5.17.0 / 5.18.0 / 5.910.5 / 7.72

RATED SPEED

RPM2400240024002400

FUEL CONSUMPTION

grm / HP / HR190190190190
L/HR1.81.82.12.6
GAL (US) / HR0.50.50.60.7

TYPE

BRANDKUBOTA/HINOTAKUBOTA/HINOTAKUBOTA/HINOTAKUBOTA/HINOTA
ELECTRIC & MANUAL START

MAXIMUM OUTPUT

QTY (HP / kW)8.0 / 5.98.0 / 5.99.0 / 6.612.0 / 8.8

CONTINUOUS RATE

QTY (HP / kW)7.0 / 5.17.0 / 5.18.0 / 5.910.5 / 7.72

RATED SPEED

RPM2400240024002400

FUEL CONSUMPTION

grm / HP / HR190190190190
L/HR1.81.82.12.7
GAL (US) / HR0.50.50.60.7

TYPE

BRANDKUBOTA/HINOTAKUBOTA/HINOTAKUBOTA/HINOTAKUBOTA/HINOTA
ELECTRIC MOTOR

RATED OUTPUT

QTY (HP / kW)5.5 / 4.07.5 / 5.57.5 / 5.510.0 / 7.5

RATED SPEED

RPM1435145014501450

TYPE

BRANDELEKTRIMELEKTRIMELEKTRIMELEKTRIM
OVERALL DIMENSIONS (INCLUDING WHEEL SET)

LENGTH

mm.3,3804,7806,5207,920

WIDTH

mm.2,1002,3002,4902,710

HEIGHT

mm.1,8201,8401,9301,940

NOTES:
* Processing capacity may fluctuate in accordance to the type of the ore, feed particle size, the speed of feeding, the ratio of water to soilds.
* Engine power rating is based on continious rate.
* Ratio: m³ = 1.5 Tons Solids (estimated), yd³ = 0.76 m³
* Ratio of solids to liquid (1/3).
* Abbreviations: QTY (Quantity), grm. (Gram), HR (hour)
* Engine / Motors: Kubota™ (Japan), Hinota™ (Japan), Elektrim™ (Switzerland).
* Specification can change without notice.

Contact us for Brochure & Quotation!

Our Sales Department will help find the best solutions for your mining project.
