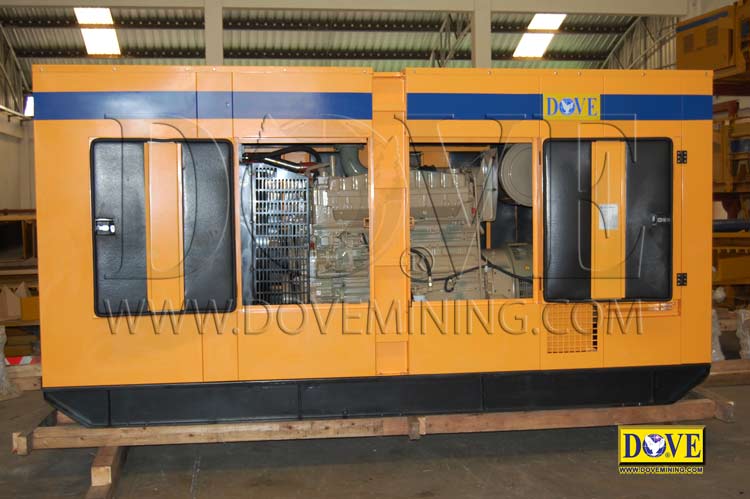

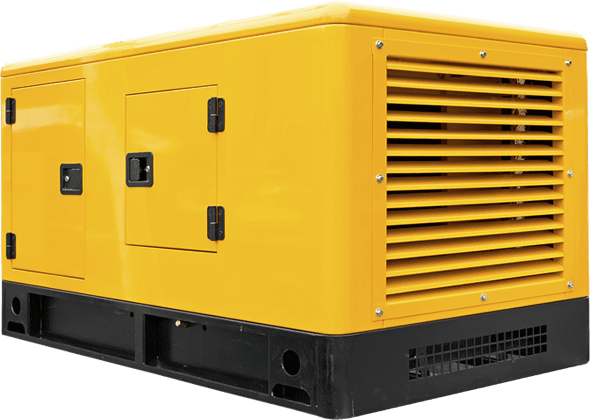

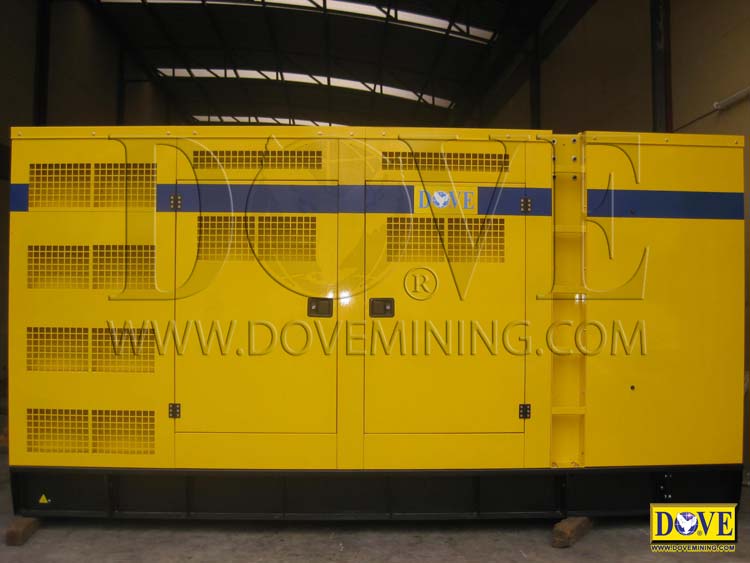

GENERATORS
(SOUNDPROOF TYPE)
POWER PLANTS

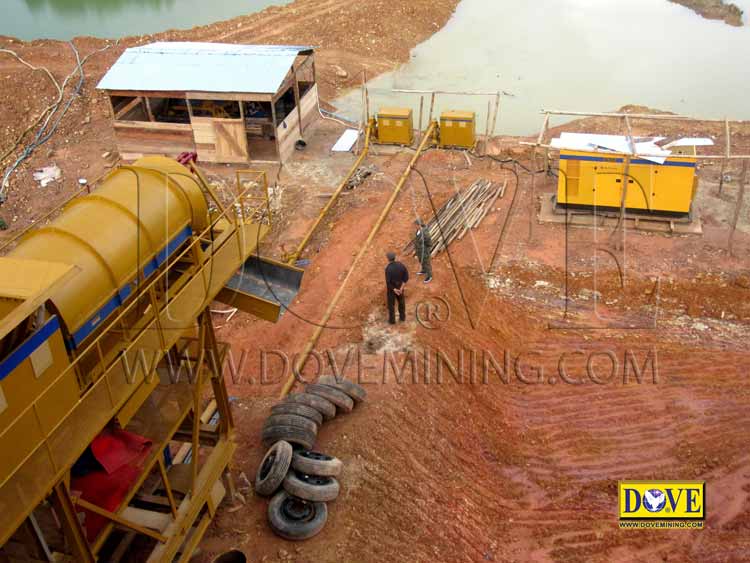

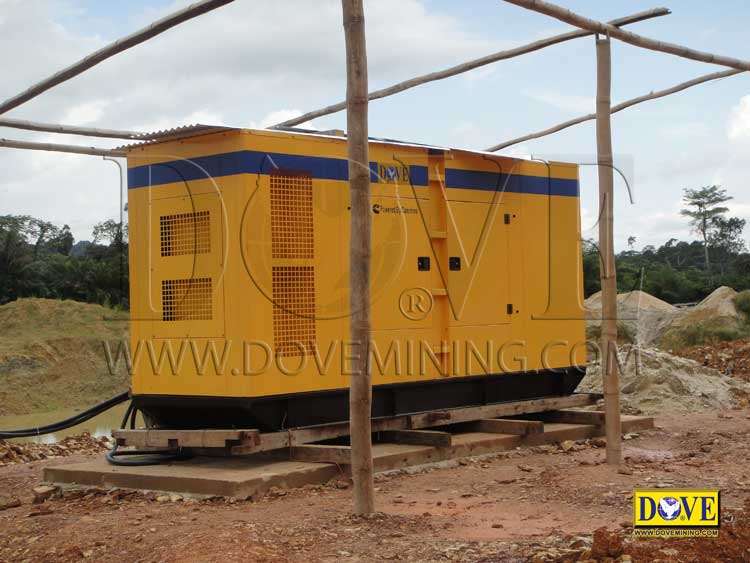

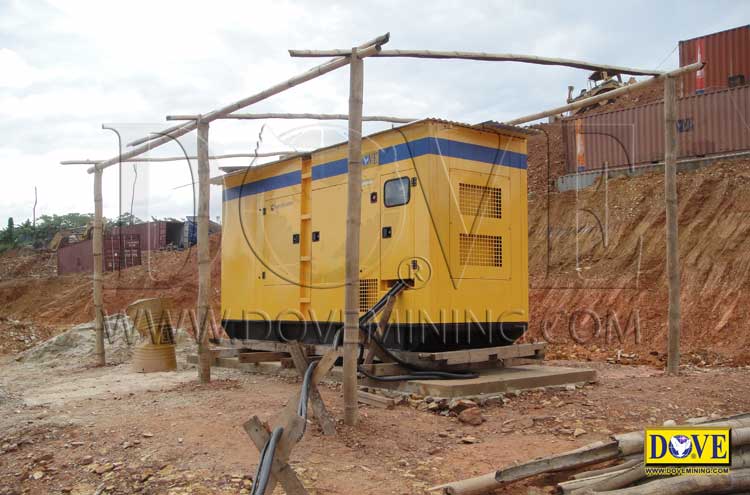

DOVE Equipment & Machinery Co., Ltd. supplies wide variety of Generators, stationary and portable (mobile). Generators are convenient and efficient power solution for your mining camp facilities, equipment, or even home or business.
GENERATORS TECHNICAL SPECIFICATIONS
| MODELS | POWER | DIESEL ENGINE | ALTERNATOR | |||||
| PRIME | STANDBY | |||||||
| kW | KVA | kW | KVA | BRAND | FREQUENCY | RPM | ||
| DGD-25 | 20 | 25 | 24 | 30 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-30 | 24 | 30 | 26 | 32 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-40 | 32 | 40 | 35 | 44 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-50 | 40 | 50 | 44 | 55 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-65 | 52 | 65 | 57 | 70 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-73 | 58 | 73 | 64 | 80 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-85 | 69 | 85 | 75 | 93 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-100 | 80 | 100 | 88 | 110 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-120 | 96 | 120 | 106 | 132 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-125 | 100 | 125 | 110 | 137.5 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-140 | 112 | 140 | 123 | 154 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-150 | 120 | 150 | 132 | 165 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-160 | 128 | 160 | 141 | 176 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-182 | 146 | 182 | 160 | 200 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-200 | 160 | 200 | 176 | 220 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-230 | 184 | 230 | 202 | 253 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-250 | 200 | 250 | 220 | 275 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-275 | 220 | 275 | 242 | 303 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-313 | 250 | 313 | 275 | 344 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-344 | 275 | 344 | 303 | 378 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-375 | 300 | 375 | 330 | 413 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-400 | 320 | 400 | 352 | 440 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-450 | 360 | 450 | 396 | 495 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-500 | 400 | 500 | 440 | 550 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-581 | 495 | 581 | 512 | 639 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-625 | 500 | 625 | 550 | 688 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-650 | 520 | 650 | 572 | 715 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-725 | 580 | 725 | 640 | 800 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-750 | 600 | 750 | 660 | 825 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-800 | 640 | 800 | 704 | 880 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-910 | 728 | 910 | 801 | 1001 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-1000 | 800 | 1000 | 880 | 1100 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-1125 | 900 | 1125 | 990 | 1238 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
| DGD-1250 | 1000 | 1250 | 1100 | 1375 | CUMMINS | 50 Hz | 1500 | BRUSHLESS STAMFORD |
ALL MODELS COME WITH:
* BRAND NEW DIESEL WATER COOL ENGINE, “CUMMINS” BRAND.
* BRAND NEW STAMFORD AC ALTERNATOR, RATINGS: 230/400V, 3PH, 50 Hz, 1500 RPM, 0.8 PF, IP23, H INSULATION CLASS.
* RADIATOR WITH ENGINE DRIVEN FAN, MOUNTED ON SKID.
* AUTO START CONTROL PANEL.
* ANTI-VIBRATION MOUNTING.
* 12/24V DC ELECTRIC START SYSTEM, WITH LEAD-ACID TYPE STARTING BATTERIES.
* INDUSTRIAL SILENCERS, WITH FLEXIBLE CONNECTS & ELBOWS.
* BASE FUEL TANK, FOR 8 HOURS OPERATION, C/W FUEL GAUGE INTEGRATED IN THE BASE OF GEN-SET.
* STANDARD TOOL KITS.
* OPTIONAL ACCESSORIES: ATS, TRAILER & WHEEL-SET, RESIDENTIAL SILENCER. AVAILABLE UPON REQUEST.
* DOVE RESERVES THE RIGHT TO MODIFY THE SPECIFICATIONS AT ANYTIME, WITHOUT PRIOR NOTICE.
WARRANTY:
All DOVE equipment carry a standard Manufacturer’s Warranty, which can be extended to 5 years, in addition to lifetime spare parts supply service.
DOVE provides full technical services worldwide, including plant engineering design, mining site construction design, site assembly, installation, test run and training.
