HYDRAULIC CANNONS / HYDRAULIC MONITORS

HYDRAULIC MONITORS – HYDRAULIC CANNONS – HIGH – PRESSURE WATER SPRAYS / GUNS

DOVE Monitors are Compact and relatively lightweight, they can be easily moved from one location to another, mounted on a truck, attached to a tower, attached to the side of the slurry dump hopper, or simply put on the ground with stand.

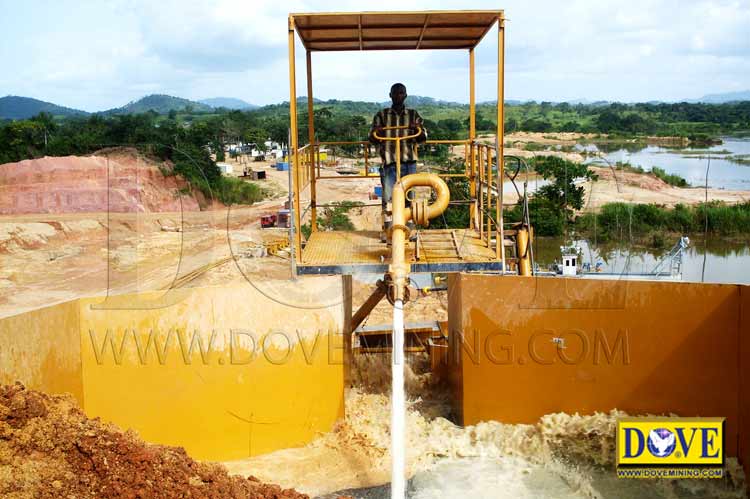

DOVE Hydraulic cannons

Various Configurations

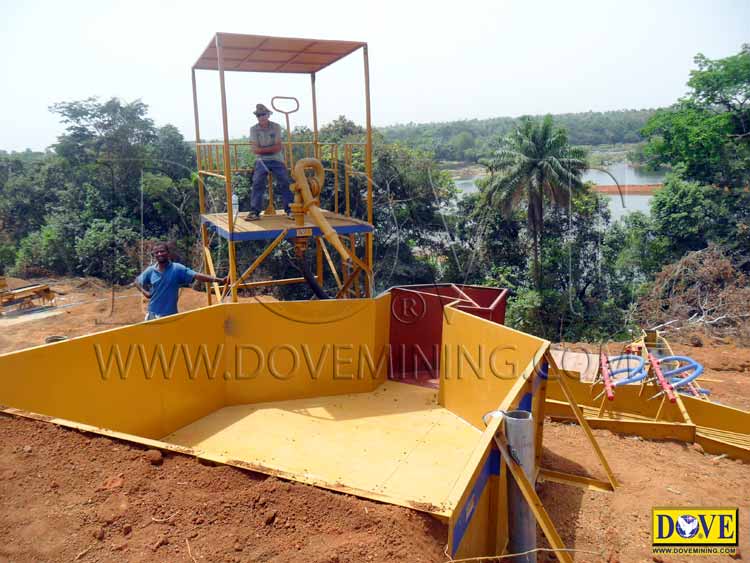

DOVE Hydraulic Cannons / Monitors are supplied as handheld or stationary units with the operator cabin and stand steel structure. For the ease of transportation and operation Hydraulic Cannons / Monitors can be supplied with portable wheel set trailers.

Hydraulic cannons

Easy To Operate

DOVE Hydraulic Cannons / Monitors are easy to move and operate. Can be moved both horizontally and vertically, 180 degrees turn.

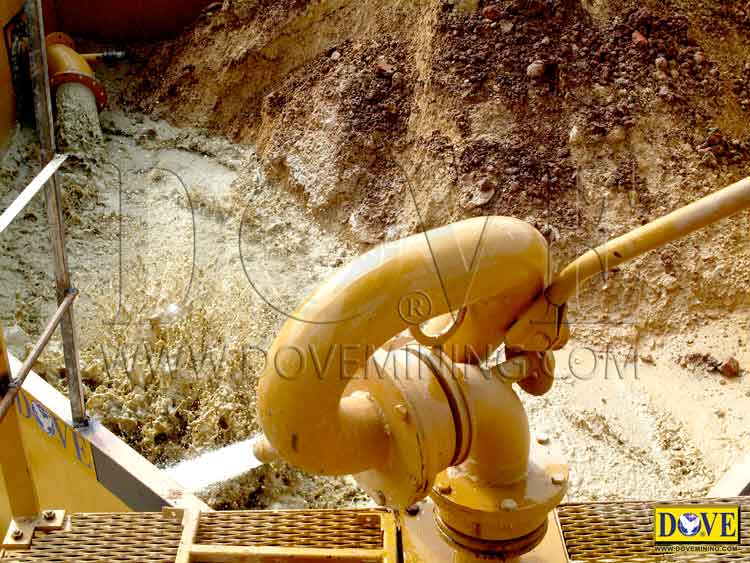

Hydraulic cannon

Quality Design

DOVE Hydraulic Cannons / Monitors are fabricated with high quality materials. Cannons are exclusively designed to balance water pressure within the gun itself to the degree, which provides perfect one – operator control regardless the water volume being handled.

HYDRAULIC MONITORS / HYDRAULIC CANNONS FEATURES & APPLICATION

The exclusive design of DOVE Hydraulic Cannons / Monitors allows the monitor, regardless its size, water volume or pressure to be easily moved, both horizontally and vertically, what results in less strain on the drive components. The unique design allows maintaining the position that has been aimed. Literally hundreds of horsepower of water pumping capacity can be handled by a touch of the finger.

Hydraulic cannon monitor portable

DOVE is a manufacturer of high quality Hydraulic Cannons / Monitors for mining and other industries. DOVE Hydraulic Monitors are efficiently used within the mining industry for various applications, including:

  • Hydraulic Mining, for waste and tailing reprocessing or for tailing logistics.
  • Ore excavation, by utilizing high-pressure jet of water, to the dumping site.
  • Hydraulic Extraction, for excavating and logistics of coal or other materials, by means of water.
  • Hydraulic Discharge, to direct discharge of surface water from the saturated zone and drainage.
  • Mineral Processing, for gravel and sand lifting to the drainage level in the gold mine, where the water pressure creates a powerful suction in a dump hopper and caries the gravel and sand to the processing plant.

DOVE brings the very best in Hydraulic Monitor packages ranging from handheld to stationary configurations, to serve the following applications:

  • Mining

  • Workboat/fireboat

  • Wastewater

  • Chemical/petrochemical

  • Pulp and paper

  • Oil refining

  • Water truck- off road/on road

HYDRAULIC CANNONS – TECHNICAL SPECIFICATIONS

DOVE CODE DESCRIPTION PRESSURE INLET OUTLET WEIGHT
Bar inch mm inch mm kg.
HM-H207 HYDRAULIC MONITOR, HANDHELD & STATIONARY, C/W
HIGH – PRESSURE HEAVY – DUTY CAST – IRON NOZZLE.
* FLEXIBLE DELIVERY PIPE, HIGH – DENSITY, HIGH – PRESSURE,
NATURAL RUBBER, NYLON REINFORCED.
* STAND AND SWIVEL BASE MECHANISM.
5 2 50 3/4 18 5-7
HM – S410 HYDRAULIC CANNON/MONITOR, SEMI – AUTOMATIC, STATIONARY, C/W
HANDLE & HIGH – PRESSURE HEAVY – DUTY REPLACEBLE CAST – IRON NOZZLE.
* HIGH – PRESSURE FLEXIBLE DELIVERY PIPE, HIGH – DENSITY,
NATURAL RUBBER, NYLON REINFORCED.
* OPERATOR CABIN & STAND STEEL STRUCTURE.
* PORTABLE SEMI – TRAILER, INCLUDING WHEEL SET & HITCH MECHANISM.
5 4 100 1 25 95
HM – S620 HYDRAULIC CANNON/MONITOR, SEMI – AUTOMATIC, STATIONARY, C/W
HANDLE & HIGH – PRESSURE HEAVY – DUTY REPLACEBLE CAST – IRON NOZZLE.
* HIGH – PRESSURE FLEXIBLE DELIVERY PIPE, HIGH – DENSITY,
NATURAL RUBBER, NYLON REINFORCED.
* OPERATOR CABIN & STAND STEEL STRUCTURE.
* PORTABLE SEMI – TRAILER, INCLUDING WHEEL SET & HITCH MECHANISM.
5 6 150 2 50 130
HM – S820 HYDRAULIC CANNON/MONITOR, SEMI – AUTOMATIC, STATIONARY, C/W
HANDLE & HIGH – PRESSURE HEAVY – DUTY REPLACEBLE CAST – IRON NOZZLE.
* HIGH – PRESSURE FLEXIBLE DELIVERY PIPE, HIGH – DENSITY,
NATURAL RUBBER, NYLON REINFORCED.
* OPERATOR CABIN & STAND STEEL STRUCTURE.
* PORTABLE SEMI – TRAILER, INCLUDING WHEEL SET & HITCH MECHANISM.
5 8 200 2 50 140

WARRANTY:

All DOVE equipment carry a standard Manufacturer’s Warranty, which can be extended to 5 years, in addition to lifetime spare parts supply service.

DOVE provides full technical services worldwide, including plant engineering design, mining site construction design, site assembly, installation, test run and training.

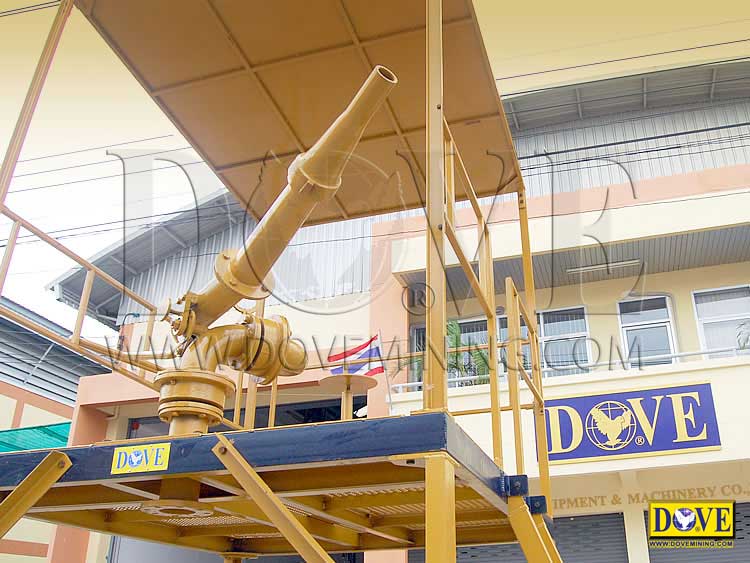

Hydraulic Monitor operation
