VIBRATING SCREENS
MINING SCREENS, CIRCULAR VIBRATING SCREENS

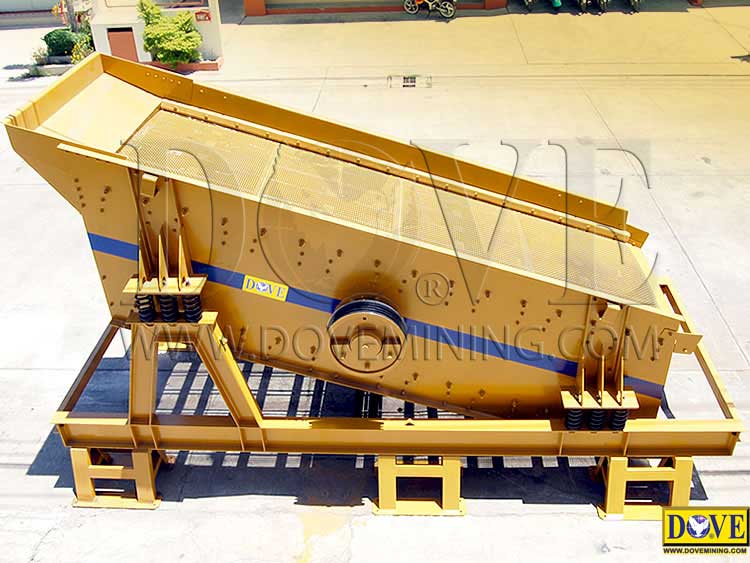

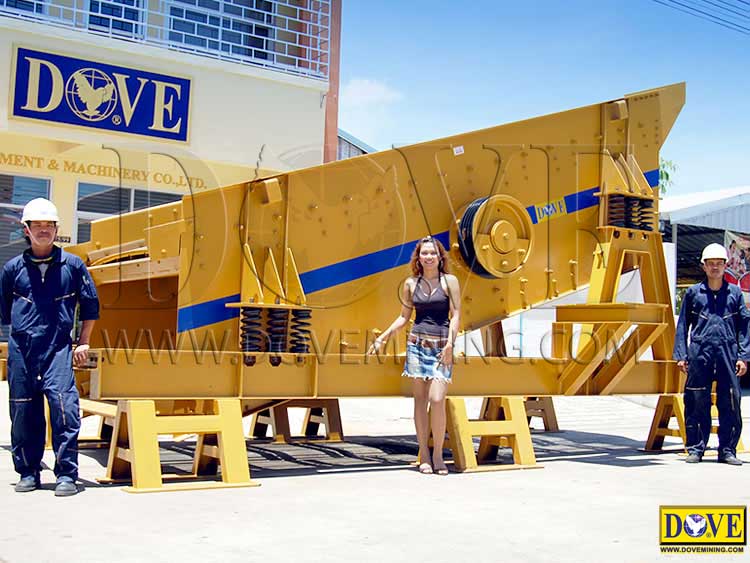

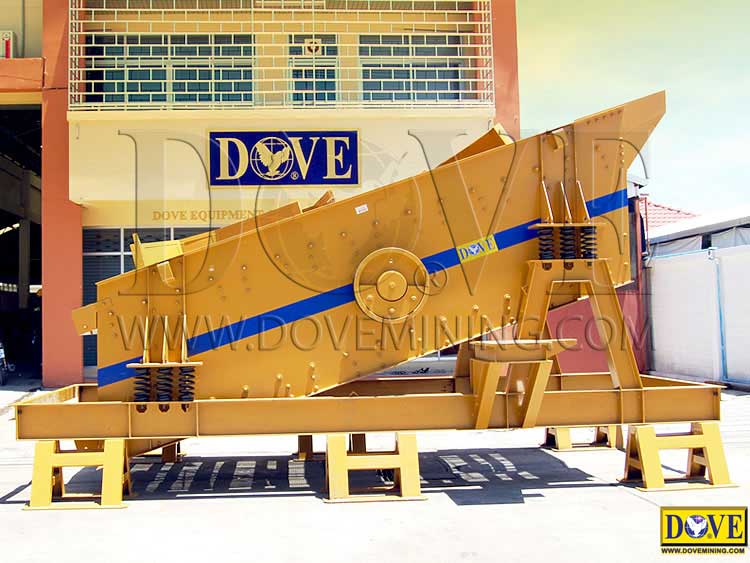

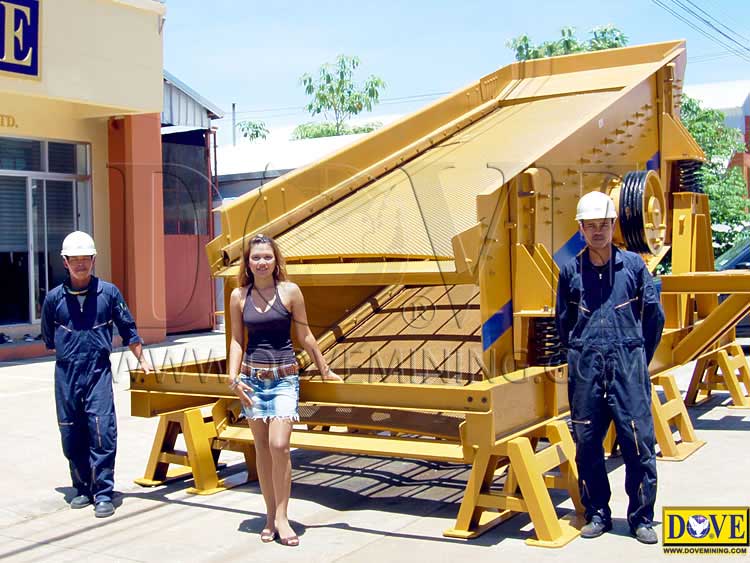

DOVE Circular Vibrating Screens, also referred to as High Frequency Vibrating Screens are highly efficient type of classifiers, well known in the industry, used for quantitative feeding of material to be continuously and uniformly segregated according to their size, into various sizes.
DOVE Vibrating Screens are powered with advanced Circular Vibration technology, which results in longer material sieves drip line and higher efficiency in screening and particles segregation.
DOVE supplies the largest range of Circular Vibrating Screens, in 54 standard models, with capacity range of (10 – 1300) Tons/ Hour, with widths from 1200 –3000 mm (47.24 -118.11 Inch) wide, and 3000-7300 mm (118.11-287.40 Inch) Long.
FEATURES:
- DOVE Circular Vibrating Screens are supplied in various designs and specifications, either as Inclined Vibrating Screen, or Horizontal Vibrating Screen.
- DOVE Vibrating Screens are supplied as Wet Vibrating Screen or Dry Vibrating Screen. The Wet Vibrating Screens are configured with high pressure Jet Spray network.
- DOVE Circular Vibrating Screens are designed with Precise engineering specifications, where the Lengths are about 2.5 times the width, to deliver the highest ore throughput and capacity to the overall efficiency and material segregation performance.
- DOVE Vibrating Screens are supplied with wide range of screen mesh sizes, depending on the model, from 3 mm to 200 mm (0.118 – 7.874 Inch).
- DOVE Circular Vibrating Screens are extremely rugged, designed for heavy duty classification of over 250 kinds of material, such as River pebbles, Quarts stone, Calcite, Granite, Iron ore, Basalt, Limestone, Diabase, Coal, etc.
- DOVE Circular Vibrating Screens are designed with strong exciting force, big capacity, high efficiency, long flowing line, and various screening grades.
- DOVE Circulating Vibrating Screens are designed with Rugged and reliable structure, long service life, extremely low operating noise, and low electric consumption.
DOVE Vibrating Screens Video
APPLICATIONS:
DOVE Circulating Vibrating Screens are essential component of processing plants, designed for classification and separation of various types of material according to pre-determined sizes.
Integration of DOVE Vibrating Screens within the processing plants results in maximizing the performance of the crushers, by sizing the material feed to the crusher and efficiently removed the final product from the crushing circuit and return the oversize back for further crushing. This will result is reduction of operating and maintenance cost.
Simultaneously, it results in increasing the efficiency of the grinding circuit, by allowing only the selected size to flow to the Ball mill and eliminate the oversize from entering the Ball Mill. This will results in reduction of operating and maintenance cost.
DOVE Circulating Vibrating Screens are well known with the mining Industry and widely used for Classification, Grading and screening materials in Solid Waste treatment plants, Chemical Industry, Quarry, Construction and Building material, Water conservancy, Hydropower, Transportation, Smelting, etc.
CIRCULAR VIBRATING SCREENS TECHNICAL SPECIFICATIONS
| MODEL | TYPE | DECKS | SCREEN SIZE | SCREEN MESH SIZE |
CAPACITY | POWER MOTOR | ||
| (mm) | (mm) | (inch) | (TPH) | (HP) | (kW) | |||
| VSD-1230-2 | DRY | 2 | 1200 x 3000 | 3 – 50 | 0.118 – 1.968 | 12 – 85 | 7.37 | 5.5 |
| VSW-1230-2 | WET | 2 | 1200 x 3000 | 3 – 50 | 0.118 – 1.968 | 12 – 85 | 7.37 | 5.5 |
| VSD-1230-3 | DRY | 3 | 1200 x 3000 | 3 – 50 | 0.118 – 1.968 | 12 – 85 | 7.37 | 5.5 |
| VDW-1230-3 | WET | 3 | 1200 x 3000 | 3 – 50 | 0.118 – 1.968 | 12 – 85 | 7.37 | 5.5 |
| VSD-1235-2 | DRY | 2 | 1200 x 3500 | 3 – 50 | 0.118 – 1.968 | 12 – 85 | 14.75 | 11 |
| VSW-1235-2 | WET | 2 | 1200 x 3500 | 3 – 50 | 0.118 – 1.968 | 12 – 85 | 14.75 | 11 |
| VSD-1235-3 | DRY | 3 | 1200 x 3500 | 3 – 50 | 0.118 – 1.968 | 12 – 85 | 14.75 | 11 |
| VSW-1235-3 | WET | 3 | 1200 x 3500 | 3 – 50 | 0.118 – 1.968 | 12 – 85 | 14.75 | 11 |
| VSD-1535-2 | DRY | 2 | 1500 x 3500 | 3 – 50 | 0.118 – 1.968 | 18 – 120 | 14.75 | 11 |
| VSW-1535-2 | WET | 2 | 1500 x 3500 | 3 – 50 | 0.118 – 1.968 | 18 – 120 | 14.75 | 11 |
| VSD-1535-3 | DRY | 3 | 1500 x 3500 | 3 – 50 | 0.118 – 1.968 | 18 – 120 | 14.75 | 11 |
| VSW-1535-3 | WET | 3 | 1500 x 3500 | 3 – 50 | 0.118 – 1.968 | 18 – 120 | 14.75 | 11 |
| VSD-1545-2 | DRY | 2 | 1500 x 4500 | 3 – 50 | 0.118 – 1.968 | 22 – 150 | 20.11 | 15 |
| VSW-1545-2 | WET | 2 | 1500 x 4500 | 3 – 50 | 0.118 – 1.968 | 22 – 150 | 20.11 | 15 |
| VSD-1545-3 | DRY | 3 | 1500 x 4500 | 3 – 50 | 0.118 – 1.968 | 22 – 150 | 20.11 | 15 |
| VSW-1545-3 | WET | 3 | 1500 x 4500 | 3 – 50 | 0.118 – 1.968 | 22 – 150 | 20.11 | 15 |
| VSD-1545-4 | DRY | 4 | 1500 x 4500 | 3 – 50 | 0.118 – 1.968 | 22 – 155 | 24.80 | 18.5 |
| VSW-1545-4 | WET | 4 | 1500 x 4500 | 3 – 50 | 0.118 – 1.968 | 22 – 155 | 24.80 | 18.5 |
| VSD-1548-2 | DRY | 2 | 1500 x 4800 | 3 – 100 | 0.118 – 3.937 | 30 – 165 | 20.11 | 15 |
| VSW-1548-2 | WET | 2 | 1500 x 4800 | 3 – 100 | 0.118 – 3.937 | 30 – 165 | 20.11 | 15 |
| VSD-1548-3 | DRY | 3 | 1500 x 4800 | 3 – 100 | 0.118 – 3.937 | 30 – 165 | 20.11 | 15 |
| VSW-1548-3 | WET | 3 | 1500 x 4800 | 3 – 100 | 0.118 – 3.937 | 30 – 165 | 20.11 | 15 |
| VSD-1548-4 | DRY | 4 | 1500 x 4800 | 3 – 100 | 0.118 – 3.937 | 30 – 165 | 24.80 | 18.5 |
| VSW-1548-4 | WET | 4 | 1500 x 4800 | 3 – 100 | 0.118 – 3.937 | 30 – 165 | 24.80 | 18.5 |
| VSD-1848-2 | DRY | 2 | 1800 x 4800 | 3 – 100 | 0.118 – 3.937 | 35 – 276 | 24.80 | 18.5 |
| VSW-1848-2 | WET | 2 | 1800 x 4800 | 3 – 100 | 0.118 – 3.937 | 35 – 276 | 24.80 | 18.5 |
| VSD-1848-3 | DRY | 3 | 1800 x 4800 | 3 – 100 | 0.118 – 3.937 | 35 – 276 | 24.80 | 18.5 |
| VSW-1848-3 | WET | 3 | 1800 x 4800 | 3 – 100 | 0.118 – 3.937 | 35 – 276 | 24.80 | 18.5 |
| VSD-1848-4 | DRY | 4 | 1800 x 4800 | 3 – 100 | 0.118 – 3.937 | 35 – 276 | 24.80 | 18.5 |
| VSW-1848-4 | WET | 4 | 1800 x 4800 | 3 – 100 | 0.118 – 3.937 | 35 – 276 | 24.80 | 18.5 |
| VSD-1860-2 | DRY | 2 | 1800 x 6000 | 3 – 100 | 0.118 – 3.937 | 65 – 580 | 29.50 | 22 |
| VSW-1860-2 | WET | 2 | 1800 x 6000 | 3 – 100 | 0.118 – 3.937 | 65 – 580 | 29.50 | 22 |
| VSD-1860-3 | DRY | 3 | 1800 x 1600 | 3 – 100 | 0.118 – 3.937 | 65 – 580 | 29.50 | 22 |
| VSW-1860-3 | WET | 3 | 1800 x 6000 | 3 – 100 | 0.118 – 3.937 | 65 – 580 | 29.50 | 22 |
| VSD-1860-4 | DRY | 4 | 1800 x 6000 | 3 – 100 | 0.118 – 3.937 | 65 – 580 | 29.50 | 22 |
| VSW-1860-4 | WET | 4 | 1800 x 6000 | 3 – 100 | 0.118 – 3.937 | 65 – 586 | 29.50 | 22 |
| VSD-2160-2 | DRY | 2 | 2100 x 6000 | 3 – 100 | 0.118 – 3.937 | 80 – 715 | 40.23 | 30 |
| VSW-2160-2 | WET | 2 | 2100 x 6000 | 3 – 100 | 0.118 – 3.937 | 80 – 715 | 40.23 | 30 |
| VSD-2160-3 | DRY | 3 | 2100 x 6000 | 3 – 100 | 0.118 – 3.937 | 80 – 715 | 40.23 | 30 |
| VSW-2160-3 | WET | 3 | 2100 x 6000 | 3 – 100 | 0.118 – 3.937 | 80 – 715 | 40.23 | 30 |
| VSD-2160-4 | DRY | 4 | 2100 x 6000 | 3 – 100 | 0.118 – 3.937 | 80 – 715 | 49.61 | 37 |
| VSW-2160-4 | WET | 4 | 2100 x 6000 | 3 – 100 | 0.118 – 3.937 | 80 – 715 | 49.61 | 37 |
| VSD-2460-2 | DRY | 2 | 2400 x 6000 | 3 – 100 | 0.118 – 3.937 | 100 – 800 | 49.61 | 37 |
| VSW-2460-2 | WET | 2 | 2400 x 6000 | 3 – 100 | 0.118 – 3.937 | 100 – 800 | 49.61 | 37 |
| VSD-2460-3 | DRY | 3 | 2400 x 6000 | 3 – 100 | 0.118 – 3.937 | 100 – 800 | 49.61 | 37 |
| VSW-2460-3 | WET | 3 | 2400 x 6000 | 3 – 100 | 0.118 – 3.937 | 100 – 800 | 49.61 | 37 |
| VSD-2870-2 | DRY | 2 | 2800 x 7000 | 3 – 200 | 0.118 – 3.937 | 150 – 1000 | 49.61 | 37 |
| VSW-2870-2 | WET | 2 | 2800 x 7000 | 3 – 200 | 0.118 – 7.874 | 150 – 1000 | 49.61 | 37 |
| VSD-2870-3 | DRY | 3 | 2800 x 7000 | 3 – 200 | 0.118 – 7.874 | 150 – 1000 | 49.61 | 37 |
| VSW-2870-3 | WET | 3 | 2800 x 7000 | 3 – 200 | 0.118 – 7.874 | 150 – 1000 | 49.61 | 37 |
| VSD-3073-2 | DRY | 2 | 3000 x 7300 | 3 – 200 | 0.118 – 7.874 | 180 – 1300 | 40.23 x 2 | 30 x 2 |
| VSW-3073-2 | WET | 2 | 3000 x 7300 | 3 – 200 | 0.118 – 7.874 | 180 – 1300 | 40.23 x 2 | 30 x 2 |
| VSD-3073-3 | DRY | 3 | 3000 x 7300 | 3 – 200 | 0.118 – 7.874 | 180 – 1300 | 40.23 x 2 | 30 x 2 |
| VSW-3073-3 | WET | 3 | 3000 x 7300 | 3 – 200 | 0.118 – 7.874 | 180 – 1300 | 40.23 x 2 | 30 x 2 |
* MAX. FEED SIZE FOR ALL MODELS 300 mm.
* ALL MODELS ARE COMING WITH ELECTRIC MOTOR, MOTOR BASE AND ACCESSORIES
* ALL MODELS DO NOT INCLUDE STEEL STRUCTURE SUPPORT AND STANDS.
* DOVE RESERVES THE RIGHT TO MODIFY THE SPECIFICATIONS AT ANYTIME, WITHOUT PRIOR NOTICE.
WARRANTY:
All DOVE equipment carry a standard Manufacturer’s Warranty, which can be extended to 5 years, in addition to lifetime spare parts supply service.
DOVE provides full technical services worldwide, including plant engineering design, mining site construction design, site assembly, installation, test run and training.
MANUFACTURING FACILITIES:
DOVE Equipment & Machinery manufacturing facilities are located about 30 minutes drive from the company Head office in Bangkok, which includes 8 factories and showroom.
DOVE Equipment and Machinery with over 50 years manufacturing expertise, and the largest range of mining and minerals processing technologies is the recipient of ISO 9001: 2015, Green Industry Certification, and Golden Eagle of Asia Awards 2020 Best Business of the Year (DOVE Equipment and Machinery and DOVE Instruments), which insures highest quality and standard of our manufacturing and customer service practices.
DOVE Manufacturing Facilities.
DOVE Equipment and Machinery 8 Factories.
Video of DOVE Manufacturing Facilities:
MINERAL TEST SERVICES:
DOVE laboratory will assay your ore samples rapidly and analyze your raw materials and recommend the most efficient processing plant according to the ore specifications, minerals composition, and ore assay results, and your project size and the geologic and topographic conditions of your mine.
Please, CONTACT US for your sample analysis and quotation.
OPERATING PRINCIPLES:
DOVE Circulating Vibrating Screens are highly efficient classifiers, representing a major component of every processing plant. They efficiently separate the material into various sizes, to be forwarded to the next step in the processing plant.
They enable crushers to achieve maximum efficiency, by sizing the Ore feed to the Crusher and efficiently removing the correct size of ore from the circuit to be supplied to the Ball Mill for Grinding.

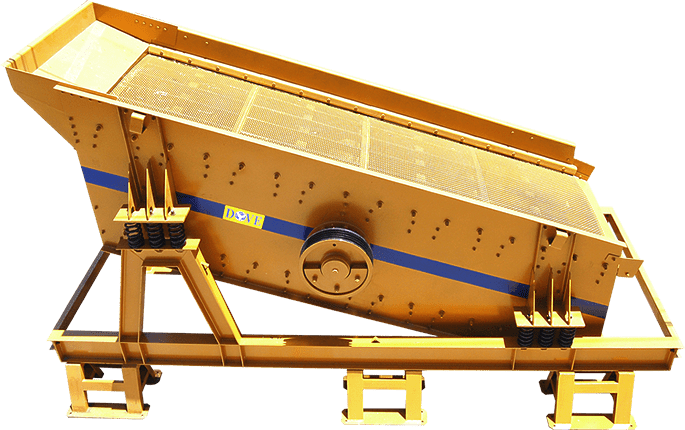

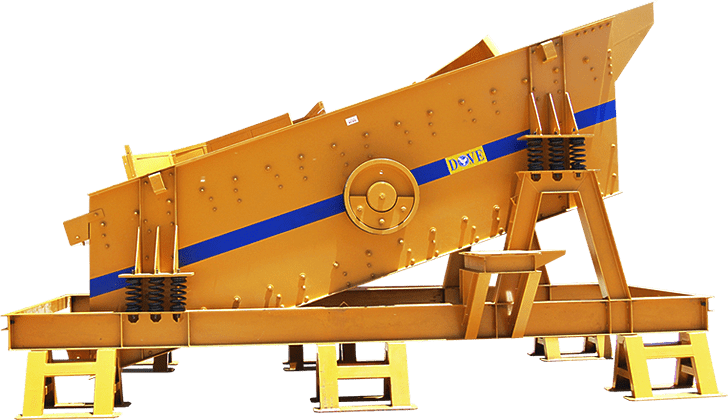

DOVE Circulating Vibrating Screens components are mainly consisted of Screen Box, Screen Mesh, Vibrating Motor, and Damping Springs. Vibrating is installed in the side panels of the Screen box, powered by electric motor, and driven through coupling, which produces the Centrifugal inertia, causing the screen box Circulating vibration.
DOVE Circulating Vibrating Screens are configured with user friendly and easy controls to make various adjustment to the Vibrating Screen operation, in respect to the type of material to be classified and segregated. The Screen surface angle can be adjusted by changing the height of the Spring bearing, The Screen plate is available with Perforated sieve plate, or Rubber sieve plate, either single layer or double layer, or other types of screen sieve plate, as per the requirements. The Motor can be located on the left or the right side of the screen box.
WE HIGHLY RECOMMEND FORWARDING SOIL SAMPLES OF YOUR MINE TO US FOR ANALYSIS, IN ORDER TO DESIGN AND RECOMMEND THE MOST EFFICIENT PROCESSING PLANT, TAILOR MAID TO YOUR MINE REQUIREMENTS, FOR HIGHEST PRODUCTION RECOVERY.
