VIBRATING SIEVE-SEPARATORS
MINERAL SEPARATORS, VIBRO-SIEVES, VIBRO-SEPARATORS, SIEVE-SEPARATORS

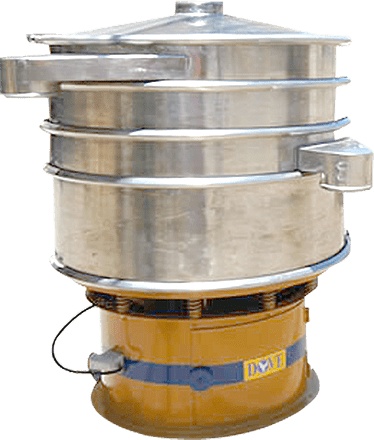

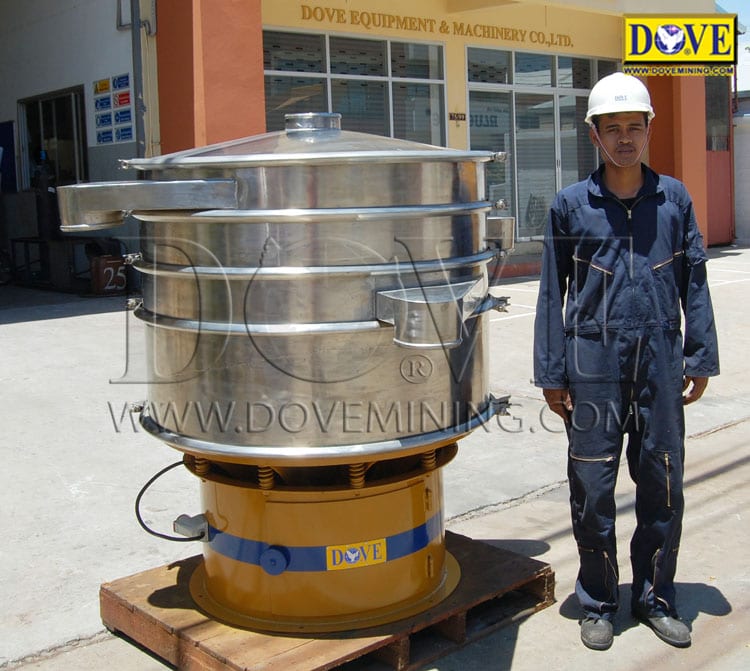

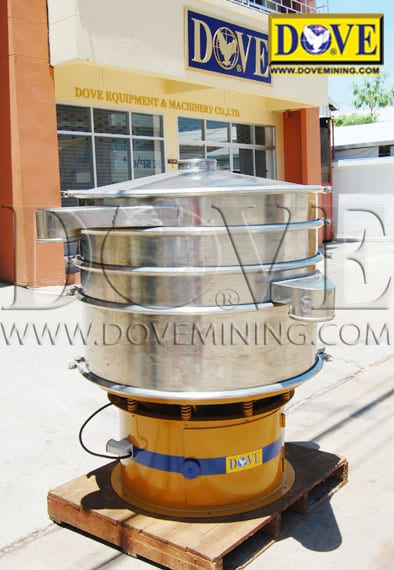

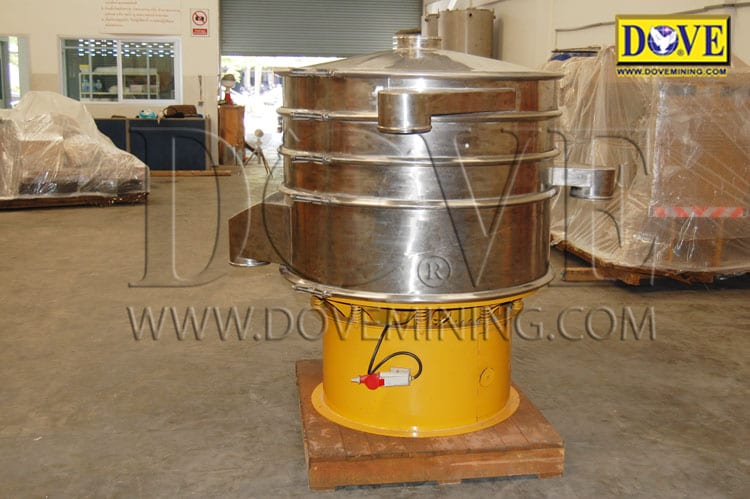

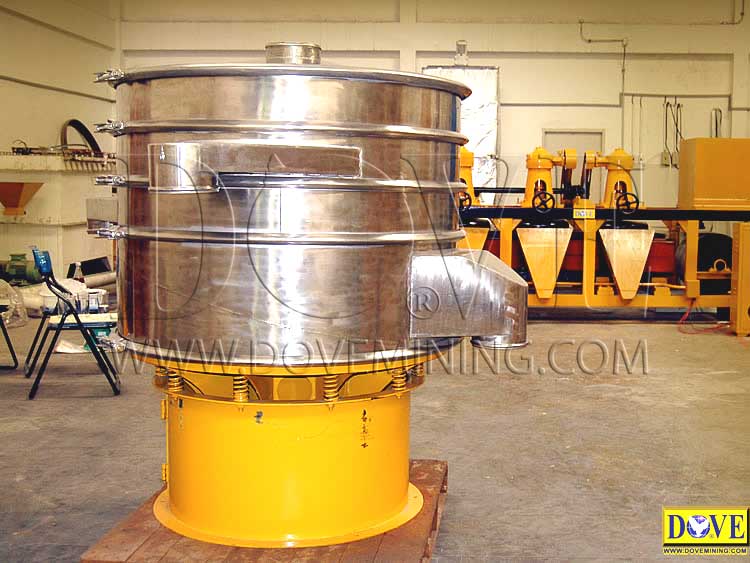

DOVE Vibrating Sieve Separators, also referred to as Vibro Separators are revolutionary vibrating mineral separators, which achieve superb performance in sieving and fine separation of a variety of properties, shapes and sizes of dry and wet grains of metallic and non metallic minerals.
DOVE Vibrating Sieve-Separators generate high three dimensional (3D) vibrations and are efficient for all products that can be screened, wet and dry, heavy and light, coarse and fine, hot and cold.
FEATURES:
• GREAT CAPACITY:
DOVE Vibrating Sieve-Separators are designed for the material to spread over the entire screening surface, resulting in maximum capacity per square foot of the screening area, processing capacity is up to 3300 kg/ Hour (3.3 TPH).
• ACCURACY:
The Vibro Separator efficiently separate the micron size particles, which are conventionally considered as one of the most difficult application, as fine as 600 mesh (0.020 mm).
• GREAT FLEXIBILITY:
DOVE Vibrating Sieve-Separators provide higher throughput in ultra-fine mesh than a conventional sieving machine and can be configured with up-to 4 screening decks for precise simultaneous and continuous separation and particle size distribution in one single operation.
• CLEANER SEPARATION:
DOVE Vibrating Sieve-Separators accurately align the particles with the screen openings to provide maximum passage of the undersize, allowing for particles as fine as 600 mesh (20 microns) to be screened.
• NO MESH BLOCKING:
DOVE Vibrating Sieve-Separators works is a 3-dimentional field that prevents the mesh-blocking problem.
• DUST PREVENTION:
DOVE Vibrating Sieve-Separators works by rumbling the material, not violently bouncing it, and the unit can be totally enclosed by using the metallic cover and neoprene feed and discharge connections. This prevents the dust from uncontrollably escape the working area.
• NO TRANSMITTED VIBRATION:
DOVE Vibrating Sieve-Separators screens float freely on supporting springs. These allow for the unit to be assembled anywhere, without needing special foundations or supports.
• SEPARATIVE MOTION SELECTION:
DOVE Vibrating Sieve- Separators allows for the motion of the screen cloth and the movement course to be freely and perfectly controlled.
• MATERIAL FABRICATION:
DOVE Vibrating Sieve-Separators frame and base can be, depending on the application, fabricated with carbon- stainless steel.
• LONGER SCREEN LIFE:
DOVE Vibrating Sieve-Separators screen cloth is made of stainless steel, which ensures long screen life.
RANGE & TECHNICAL SPECIFICATIONS:
| MODEL | NUMBER OF DECKS | EFFECTIVE AREA OF SCREEN | FEED RATE | DRIVE SYSTEM | SCREEN MESH | OVERALL DIMENSION | APPROX. WEIGHT | |
| (3/380/50 Hz) | L x W xH | |||||||
| mm | kg/hour | KW | HP | mm | mm | kg | ||
| DI-RSS | 1-6 | 200 | 40 – 100 | 0.37 | 0.50 | 0.020 – 20.00 | 580 x 380 x 880 | 50 |
| VSS-400-1 | 1 | 350 | 100 | 0.18 | 0.24 | 0.020 – 20.00 | 550 x 550 x 900 | 70 |
| VSS-400-2 | 2 | 350 | 100 | 0.18 | 0.24 | 0.020 – 20.00 | 550 x 550 x 1000 | 80 |
| VSS-400-3 | 3 | 350 | 100 | 0.18 | 0.24 | 0.020 – 20.00 | 550 x 550 x 1100 | 90 |
| VSS-400-4 | 4 | 350 | 100 | 0.18 | 0.24 | 0.020 – 20.00 | 550 x 550 x 1200 | 100 |
| VSS-600-1 | 1 | 550 | 500 | 0.25 | 0.34 | 0.020 – 20.00 | 750 x 750 x 1000 | 120 |
| VSS-600-2 | 2 | 550 | 500 | 0.25 | 0.34 | 0.020 – 20.00 | 750 x 750 x 1100 | 140 |
| VSS-600-3 | 3 | 550 | 500 | 0.25 | 0.34 | 0.020 – 20.00 | 750 x 750 x 1200 | 160 |
| VSS-600-4 | 4 | 550 | 500 | 0.25 | 0.34 | 0.020 – 20.00 | 750 x 750 x 1350 | 180 |
| VSS-800-1 | 1 | 750 | 1000 | 0.55 | 0.74 | 0.020 – 20.00 | 950 x 950 1000 | 170 |
| VSS-800-2 | 2 | 750 | 1000 | 0.55 | 0.74 | 0.020 – 20.00 | 950 x 950 x 1100 | 185 |
| VSS-800-3 | 3 | 750 | 1000 | 0.55 | 0.74 | 0.020 – 20.00 | 950 x 950 1200 | 205 |
| VSS-800-4 | 4 | 750 | 1000 | 0.55 | 0.74 | 0.020 – 20.00 | 950 x 950 x 1350 | 220 |
| VSS-1000-1 | 1 | 920 | 1500 | 0.75 | 1.00 | 0.020 – 20.00 | 1100 x 1100 x 1100 | 270 |
| VSS-1000-2 | 2 | 920 | 1500 | 0.75 | 1.00 | 0.020 – 20.00 | 1100 x 1100 x 1200 | 300 |
| VSS-1000-3 | 3 | 920 | 1500 | 0.75 | 1.00 | 0.020 – 20.00 | 1100 x 1100 x 1350 | 330 |
| VSS-1000-4 | 4 | 920 | 1500 | 0.75 | 1.00 | 0.020 – 20.00 | 1100 x 1100 x 1450 | 360 |
| VSS-1200-1 | 1 | 1120 | 2100 | 1.10 | 1.50 | 0.020 – 20.00 | 1300 x 1300 x 1200 | 350 |
| VSS-1200-2 | 2 | 1120 | 2100 | 1.10 | 1.50 | 0.020 – 20.00 | 1300 x 1300 x 1320 | 385 |
| VSS-1200-3 | 3 | 1120 | 2100 | 1.10 | 1.50 | 0.020 – 20.00 | 1300 x 1300 x 1450 | 440 |
| VSS-1200-4 | 4 | 1120 | 2100 | 1.10 | 1.50 | 0.020 – 20.00 | 1300 x 1300 1650 | 500 |
| VSS-1500-1 | 1 | 1420 | 2600 | 1.50 | 2.00 | 0.020 – 20.00 | 1650 x 1650 x 1350 | 590 |
| VSS-1500-2 | 2 | 1420 | 2600 | 1.50 | 2.00 | 0.020 – 20.00 | 1650 x 1650 x 1500 | 720 |
| VSS-1500-3 | 3 | 1420 | 2600 | 1.50 | 2.00 | 0.020 – 20.00 | 1650 x 1650 x 1650 | 860 |
| VSS-1500-4 | 4 | 1420 | 2600 | 1.50 | 2.00 | 0.020 – 20.00 | 1650 x 1650 x 1800 | 1000 |
| VSS-1800-1 | 1 | 1720 | 3300 | 2.20 | 3.00 | 0.020 – 20.00 | 2000 x 2000 x 1450 | 1150 |
| VSS-1800-2 | 2 | 1720 | 3300 | 2.20 | 3.00 | 0.020 – 20.00 | 2000 x 2000 x 1600 | 1300 |
| VSS-1800-3 | 3 | 1720 | 3300 | 2.20 | 3.00 | 0.020 – 20.00 | 2000 x 2000 x 1800 | 1450 |
| VSS-1800-4 | 4 | 1720 | 3300 | 2.20 | 3.00 | 0.020 – 20.00 | 2000 x 2000 x 1950 | 1600 |
APPLICATION:
Vibrating Sieve-Separators, also known as vibrating sieves, vibrating sieve machines, mineral separators, vibro-sieves, vibro-separators, sieve separators, have a wide application for all kinds of manufacturing and material processing industries for Dry or Wet applications like:
• METAL AND MINING INDUSTRIES:
Tin, Iron, Copper and other minerals (powder, granule), Material for power metallurgy (powder), Coal, Cokes (granular), Aluminium Foil (speck, liquid), Steel Shot (granule), Fluorescent Substances (powder), Cast Dust (granule).
• CERAMIC INDUSTRY:
Silica Sand, Beach Sand (granule), Potter Clay, Clay (powder, liquid), Abrasive, Alundum (granule), Ceramic (powder, liquid), Fire-proof Material: chamotte, castor, agalmatolite (granule), Ferrite (powder), Glass (powder), Kaolin (powder).
• CHEMICAL INDUSTRY, PLASTIC PRODUCTION:
Synthetic resins (pellet, beads, powder), Wood powder, Paints, Cosmetics, Dyestuffs (powder, liquid), Medical Supplies, Industrial Medicine (granule, powder), Soap (powder, liquid), Fire-fighting Material (powder), Oil Refinery (liquid), Silica Powder, Nitrate, Magnesium, Graphite (powder), Rubber Filler (powder).
• FOOD INDUSTRY:
Wheat, Soya Bean, Corn (granule, powder), Yeast (liquid), Wheat Starch, Corn Starch (liquid, powder), Potato Starch (powder), Spice (powder), Granulated Sugar for refining (square shaped), Fish Meal for feed (bit, powder), Feed Corn (granule), Dairy Products (powder), Fruits, Vegetables (liquid), Ketchup Sauce (liquid), Bean Jam (paste).
WARRANTY:
All DOVE equipment carry a standard Manufacturer’s Warranty, which can be extended to 5 years, in addition to lifetime spare parts supply service.
DOVE provides full technical services worldwide, including plant engineering design, mining site construction design, site assembly, installation, test run and training.
MANUFACTURING FACILITIES:
DOVE Equipment & Machinery manufacturing facilities are located about 30 minutes drive from the company Head office in Bangkok, which includes 8 factories and showroom.
DOVE Equipment and Machinery with over 50 years manufacturing expertise, and the largest range of mining and minerals processing technologies is the recipient of ISO 9001: 2015, Green Industry Certification, and Golden Eagle of Asia Awards 2020 Best Business of the Year (DOVE Equipment and Machinery and DOVE Instruments), which insures highest quality and standard of our manufacturing and customer service practices.
DOVE Manufacturing Facilities.
DOVE Equipment and Machinery 8 Factories.
Video of DOVE Manufacturing Facilities:
MINERAL TEST SERVICES:
DOVE laboratory will assay your ore samples rapidly and analyze your raw materials and recommend the most efficient processing plant according to the ore specifications, minerals composition, and ore assay results, and your project size and the geologic and topographic conditions of your mine.
Please, CONTACT US for your sample analysis and quotation.
VIBRATING SIEVE-SEPARATOR OPERATION PRINCIPLE:
DOVE Vibro Separator is a screening device that operates on the basis of three-dimensional vibration, three ways simultaneously vertically, horizontally, and tangentially.
Eccentric weights on the upper and lower ends the motor shaft cause the screen to vibrate.
The upper weight causes the horizontal motion, the lower weight cause the vertical and tangential motions.
The relation of the lower weight to the upper weight is easily adjustable to control the spiral screening pattern.
This unique motion provides a degree of screening capacity and efficiency superior to any other screening device.
By controlling the phase angles of those weights before operation, they provide several types of grain flows.
WE HIGHLY RECOMMEND FORWARDING SOIL SAMPLES OF YOUR MINE TO US FOR ANALYSIS, IN ORDER TO DESIGN AND RECOMMEND THE MOST EFFICIENT PROCESSING PLANT, TAILOR MAID TO YOUR MINE REQUIREMENTS, FOR HIGHEST PRODUCTION RECOVERY.
