SUPERMINER® (COMPACT SERIES)
Mobile Alluvial Gold, Diamond & Gemstone Processing Plants

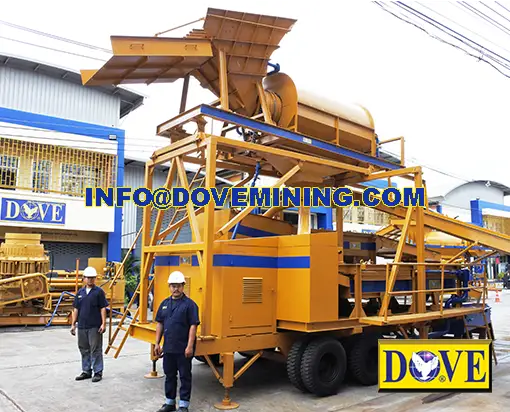

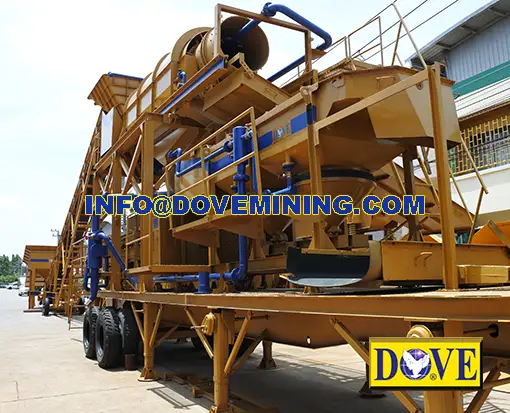

SUPERMINER® Compact Series, 25 TPH Mobile Processing Plant.
SUPERMINER® (Compact Series) is a mobile alluvial (placer) Gold, Diamond & Gemstone processing and recovery plant, designed for professional startups, artisanal miners transitioning to professional mining, small-scale mining operations, and exploration projects.
Designed for mobility, operational simplicity and professional performance, SUPERMINER® (Compact Series) provides the highest recovery through a mercury-free, cyanide-free process, using only recycled water.
Fully mobile and field-deployable, it offers rapid installation and operation startup with the lowest capital investment and operating cost (below 2%).
WHO IT’S FOR:
SUPERMINER® (Compact Series) is an ideal unit for:
- Artisanal miners transitioning to small-scale professional mining operations with affordable budget.
- Professional small-scale miners, requiring the highest recovery, with no loss.
- Early-stage exploration projects.
- Remote site operators.
- Teams seeking high production recovery and low-maintenance solutions.

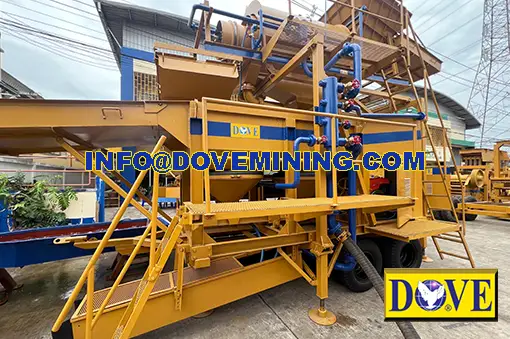

SUPERMINER® (Compact Series) Mobile Plant.
KEY FEATURES:
• EFFICIENCY:
SUPERMINER® (Compact Series) Plants are designed for the highest recovery of Alluvial Gold, Diamonds, other metals and minerals, down to 50 micron (0.05 mm), (0.002 inches) particle size.
• PRODUCTION SECURITY:
SUPERMINER® (Compact Series) Mobile Processing Plants are designed with DOVE production security system and locking mechanism to prevent the unauthorized access and theft of the production.

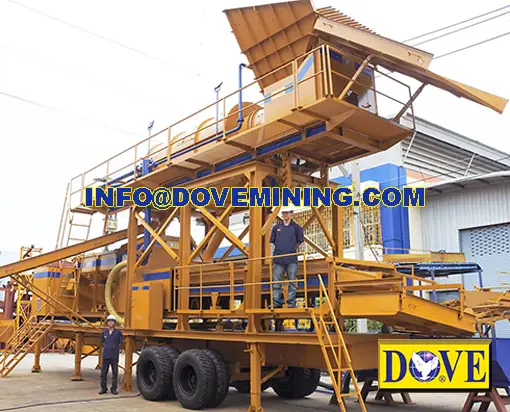

SUPERMINER® (Compact Series) Mobile Plant.
• SIMULTANEOUS PROCESSING:
SUPERMINER® (Compact Series) Mobile Gold and Diamond Processing Plants are designed for automatic and simultaneous processing and recovery of Gold, Diamonds and other precious Gemstones, maximizing efficiency and production.
• USER-FRIENDLY:
SUPERMINER® (Compact Series) Mobile Plants are designed for easy operation and maintenance on site. The user-friendly design requires no previous expertise and only one (1) day of training for installation and operation.

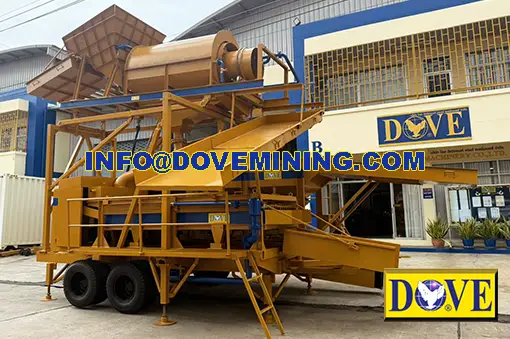

SUPERMINER® (Compact Series).
• MOBILITY:
SUPERMINER® (Compact Series) Mobile Plants are ruggedly built, fully mobile, and quick to deploy, providing freedom of movement and flexibility to manage the mining operation. With rapid installation and minimum site preparation, SUPERMINER® (Compact Series) is ready when you are.
• ENVIRONMENT-FRIENDLY:
SUPERMINER® (Compact Series) Mobile Plants operate with no mercury and no cyanide, using only recycled water for a 100% environment-friendly recovery process.

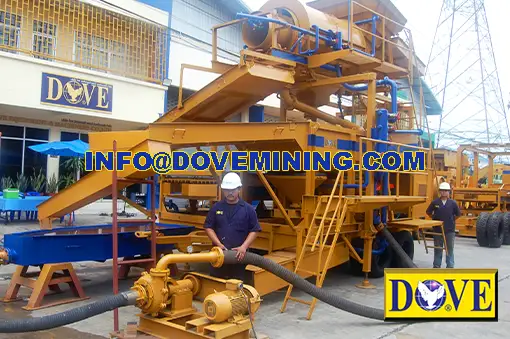

SUPERMINER® (Compact Series) Mobile Processing Plant.
TECHNICAL SPECIFICATIONS
SUPERMINER® (COMPACT SERIES) MOBILE ALLUVIAL (PLACER) GOLD PROCESSING PLANTS
| MODEL | PRODUCT DESCRIPTION | PROCESSING CAPACITY | ||||
| SOLIDS/HOUR | SLURRY/HOUR | |||||
| TONNES | CUBIC METERS | CUBIC YARDS | CUBIC METERS | CUBIC YARDS | ||
| SDC – 10G | MOBILE ALLUVIAL (PLACER) GOLD PROCESSING PLANT | 10.0 | 6.7 | 8.2 | 40.0 | 52.3 |
| SDC – 15G | MOBILE ALLUVIAL (PLACER) GOLD PROCESSING PLANT | 15.0 | 10.0 | 12.3 | 60.0 | 78.5 |
| SDC – 25G | MOBILE ALLUVIAL (PLACER) GOLD PROCESSING PLANT | 25.0 | 16.7 | 20.6 | 100.0 | 130.8 |
- THE CAPACITIES ARE BASED ON ORE WITH MIXTURE OF LIGHT CLAY AND SAND. RATIO IS 1/4 SOLIDS TO LIQUID.
- THE CAPACITIES CONVERSION OF SOLIDS ARE BASED ON DENSITY OF 1.5 METRIC TONS/CUBIC METER AND 1.215 METRIC TONS/CUBIC YARD. FOR SLURRY, 1 CUBIC METER IS EQUIVALENT TO 1.30795 CUBIC YARD.
* DOVE reserves the right to modify the specifications at anytime, without prior notice.
SUPERMINER ® (COMPACT SERIES) MOBILE ALLUVIAL (PLACER) DIAMOND PROCESSING PLANTS
| MODEL | PRODUCT DESCRIPTION | PROCESSING CAPACITY | ||||
| SOLIDS/HOUR | SLURRY/HOUR | |||||
| TONNES | CUBIC METERS | CUBIC YARDS | CUBIC METERS | CUBIC YARDS | ||
| SCC – 10D | MOBILE ALLUVIAL (PLACER) DIAMOND PROCESSING PLANT | 10.0 | 6.7 | 8.2 | 40.0 | 52.3 |
| SCC – 15D | MOBILE ALLUVIAL (PLACER) DIAMOND PROCESSING PLANT | 15.0 | 10.0 | 12.3 | 60.0 | 78.5 |
| SCC – 25D | MOBILE ALLUVIAL (PLACER) DIAMOND PROCESSING PLANT | 25.0 | 16.7 | 20.6 | 100.0 | 130.8 |
- THE CAPACITIES ARE BASED ON ORE WITH MIXTURE OF LIGHT CLAY AND SAND. RATIO IS 1/4 SOLIDS TO LIQUID.
- THE CAPACITIES CONVERSION OF SOLIDS ARE BASED ON DENSITY OF 1.5 METRIC TONS/CUBIC METER AND 1.215 METRIC TONS/CUBIC YARD. FOR SLURRY, 1 CUBIC METER IS EQUIVALENT TO 1.30795 CUBIC YARD.
* DOVE reserves the right to modify the specifications at anytime, without prior notice.
SUPERMINER® (COMPACT SERIES)
MOBILE ALLUVIAL (PLACER) GOLD AND DIAMOND PROCESSING PLANTS
| MODEL | PRODUCT DESCRIPTION | PROCESSING CAPACITY | ||||
| SOLIDS/HOUR | SLURRY/HOUR | |||||
| TONNES | CUBIC METERS | CUBIC YARDS | CUBIC METERS | CUBIC YARDS | ||
| SDC – 10GD | MOBILE ALLUVIAL (PLACER) GOLD & DIAMOND PROCESSING PLANT | 10.0 | 6.7 | 8.2 | 40.0 | 52.3 |
| SDC – 15GD | MOBILE ALLUVIAL (PLACER) GOLD & DIAMOND PROCESSING PLANT | 15.0 | 10.0 | 12.3 | 60.0 | 78.5 |
| SDC – 25GD | MOBILE ALLUVIAL (PLACER) GOLD & DIAMOND PROCESSING PLANT | 25.0 | 16.7 | 20.6 | 100.0 | 130.8 |
- THE CAPACITIES ARE BASED ON ORE WITH MIXTURE OF LIGHT CLAY AND SAND. RATIO IS 1/4 SOLIDS TO LIQUID.
- THE CAPACITIES CONVERSION OF SOLIDS ARE BASED ON DENSITY OF 1.5 METRIC TONS/CUBIC METER AND 1.215 METRIC TONS/CUBIC YARD. FOR SLURRY, 1 CUBIC METER IS EQUIVALENT TO 1.30795 CUBIC YARD.
* DOVE reserves the right to modify the specifications at anytime, without prior notice.
Big Results from a Small Footprint
- Professional processing plant for a small-scale startup.
- Fully mobile, field-deployable units.
- Capacities: 10, 15, and 25 TPH.
- Upgraded classification & concentration for the highest gold and / or diamonds recovery.
- Water recycling and sustainable chemocal-free mining operation.
- High quality material fabrication, for reliable operation in remote mining locations.
- Designed to operate all year around, during dry and rainy seasons.
GROW WITH SUPERMINER®:
SUPERMINER® (Compact Series) is part of the DOVE SUPERMINER® family of mobile alluvial (placer) processing plants.
As your mining operation expands, explore the complete SUPERMINER® range for higher capacities up to 250 TPH and increased production.
WARRANTY:
All DOVE equipment carry a standard Manufacturer’s Warranty, which can be extended to 5 years, in addition to lifetime spare parts supply service.
DOVE provides full technical services worldwide, including plant engineering design, mining site construction design, site assembly, installation, test run and training.
MANUFACTURING FACILITIES:
DOVE Equipment & Machinery manufacturing facilities are located about 30 minutes drive from the company Head office in Bangkok, which includes 9 factories and showroom.
DOVE Equipment and Machinery with over 60 years manufacturing expertise, and the largest range of mining and minerals processing technologies is the recipient of ISO 9001: 2015, Green Industry Certification, and Golden Eagle of Asia Awards 2020 Best Business of the Year (DOVE Equipment and Machinery and DOVE Instruments), which ensures highest quality and standard of our manufacturing and customer service practices.
DOVE Manufacturing Facilities.
DOVE Equipment and Machinery Factories.
Video of DOVE Manufacturing Facilities:
MINERAL TEST SERVICES:
DOVE laboratory will assay your ore samples rapidly and analyze your raw materials and recommend the most efficient processing plant according to the ore specifications, minerals composition, and ore assay results, and your project size and the geologic and topographic conditions of your mine.
Please, CONTACT US for your sample analysis and quotation.
WE HIGHLY RECOMMEND FORWARDING SOIL SAMPLES OF YOUR MINE TO US FOR ANALYSIS, IN ORDER TO DESIGN AND RECOMMEND THE MOST EFFICIENT PROCESSING PLANT, TAILOR MAID TO YOUR MINE REQUIREMENTS, FOR HIGHEST PRODUCTION RECOVERY.
