SUPERMINER® MOBILE WASH PLANT, GOLD WASH PLANT, DIAMOND WASH PLANT
SUPERMINER® Mobile Wash Plant.
The SUPERMINER® Mobile Processing Plants, also referred to as Mobile Wash Plants exclusively designed, patented and developed by DOVE Equipment & Machinery Co., Ltd., for surface mining operations of alluvial Gold, alluvial Diamonds, Gold and Diamonds together, Gemstones, Ferrous metals, and other Alluvial (Placer) minerals.
SUPERMINER® Mobile Alluvial Processing Plants (Mobile Wash Plants) are produced in 60 models, with capacity ranging from 10-200 TPH solids (40-800 m3/Hour slurry).
FEATURES:
• EFFICIENCY:
SUPERMINER® Plants are designed for 100% recovery of Alluvial Gold, Diamonds, other metals and minerals, with no loss.
• PRODUCTION SECURITY:
SUPERMINER® Mobile Processing Plants are designed with complete production security system and locking mechanism to prevent the unauthorized access and theft of the production.
SUPERMINER® Wash Plant.
• SIMULTANEOUS PROCESSING:
SUPERMINER® Mobile Gold and Diamond Processing Plants are designed for automatic and simultaneous processing and recovery of gold and diamonds together.
• USER-FRIENDLY:
SUPERMINER® Mobile Plants offer features such as the ability to easily be operated and maintained on the site, offering a user-friendly experience that requires no expertise and only one day of training.
SUPERMINER® Gold Wash Plant.
• MOBILITY:
SUPERMINER® Mobile Plants are easily installed and transported through the mining site, resulting in rapid deployment on the site. No site construction is required. Plants are fully mobile to allow ease of movement in the field.
• ENVIRONMENT-FRIENDLY:
No environmental impact, chemical free, requires only recycled water.
SUPERMINER® Mobile Processing Plant.
TECHNICAL SPECIFICATIONS
SUPERMINER® MOBILE ALLUVIAL (PLACER) GOLD PROCESSING PLANTS
| MODEL | PRODUCT DESCRIPTION | PROCESSING CAPACITY | ||||
| SOLIDS/HOUR | SLURRY/HOUR | |||||
| TONNES | CUBIC METERS | CUBIC YARDS | CUBIC METERS | CUBIC YARDS | ||
| SDA – 10G | MOBILE ALLUVIAL (PLACER) GOLD PROCESSING PLANT | 10.0 | 6.7 | 8.2 | 40.0 | 52.3 |
| SDA – 15G | MOBILE ALLUVIAL (PLACER) GOLD PROCESSING PLANT | 15.0 | 10.0 | 12.3 | 60.0 | 78.5 |
| SDA – 25G | MOBILE ALLUVIAL (PLACER) GOLD PROCESSING PLANT | 25.0 | 16.7 | 20.6 | 100.0 | 130.8 |
| SDA – 50G | MOBILE ALLUVIAL (PLACER) GOLD PROCESSING PLANT | 50.0 | 33.3 | 41.2 | 200.0 | 261.6 |
| SDA – 80G | MOBILE ALLUVIAL (PLACER) GOLD PROCESSING PLANT | 80.0 | 53.3 | 65.8 | 320.0 | 418.5 |
| SDA – 100G | MOBILE ALLUVIAL (PLACER) GOLD PROCESSING PLANT | 100.0 | 66.7 | 82.3 | 400.0 | 523.2 |
| SDA – 120G | MOBILE ALLUVIAL (PLACER) GOLD PROCESSING PLANT | 120.0 | 80.0 | 98.8 | 480.0 | 627.8 |
| SDA – 150G | MOBILE ALLUVIAL (PLACER) GOLD PROCESSING PLANT | 150.0 | 100.0 | 123.5 | 600.0 | 784.8 |
| SDA – 170G | MOBILE ALLUVIAL (PLACER) GOLD PROCESSING PLANT | 170.0 | 113.3 | 139.9 | 680.0 | 889.4 |
| SDA – 200G | MOBILE ALLUVIAL (PLACER) GOLD PROCESSING PLANT | 200.0 | 133.3 | 164.6 | 800.0 | 1046.4 |
- THE CAPACITIES ARE BASED ON ORE WITH MIXTURE OF LIGHT CLAY AND SAND. RATIO IS 1/4 SOLIDS TO LIQUID.
- THE CAPACITIES CONVERSION OF SOLIDS ARE BASED ON DENSITY OF 1.5 METRIC TONS/CUBIC METER AND 1.215 METRIC TONS/CUBIC YARD. FOR SLURRY, 1 CUBIC METER IS EQUIVALENT TO 1.30795 CUBIC YARD.
* DOVE reserves the right to modify the specifications at anytime, without prior notice.
SUPERMINER ® MOBILE ALLUVIAL (PLACER) DIAMOND PROCESSING PLANTS
| MODEL | PRODUCT DESCRIPTION | PROCESSING CAPACITY | ||||
| SOLIDS/HOUR | SLURRY/HOUR | |||||
| TONNES | CUBIC METERS | CUBIC YARDS | CUBIC METERS | CUBIC YARDS | ||
| SUA – 10D | MOBILE ALLUVIAL (PLACER) DIAMOND PROCESSING PLANT | 10.0 | 6.7 | 8.2 | 40.0 | 52.3 |
| SUA – 15D | MOBILE ALLUVIAL (PLACER) DIAMOND PROCESSING PLANT | 15.0 | 10.0 | 12.3 | 60.0 | 78.5 |
| SUA – 25D | MOBILE ALLUVIAL (PLACER) DIAMOND PROCESSING PLANT | 25.0 | 16.7 | 20.6 | 100.0 | 130.8 |
| SUA – 50D | MOBILE ALLUVIAL (PLACER) DIAMOND PROCESSING PLANT | 50.0 | 33.3 | 41.2 | 200.0 | 261.6 |
| SUA – 80D | MOBILE ALLUVIAL (PLACER) DIAMOND PROCESSING PLANT | 80.0 | 53.3 | 65.8 | 320.0 | 418.5 |
| SUA – 100D | MOBILE ALLUVIAL (PLACER) DIAMOND PROCESSING PLANT | 100.0 | 66.7 | 82.3 | 400.0 | 523.2 |
| SUA – 120D | MOBILE ALLUVIAL (PLACER) DIAMOND PROCESSING PLANT | 120.0 | 80.0 | 98.8 | 480.0 | 627.8 |
| SUA – 150D | MOBILE ALLUVIAL (PLACER) DIAMOND PROCESSING PLANT | 150.0 | 100.0 | 123.5 | 600.0 | 784.8 |
| SUA – 170D | MOBILE ALLUVIAL (PLACER) DIAMOND PROCESSING PLANT | 170.0 | 113.3 | 139.9 | 680.0 | 889.4 |
| SUA – 200D | MOBILE ALLUVIAL (PLACER) DIAMOND PROCESSING PLANT | 200.0 | 133.3 | 164.6 | 800.0 | 1046.4 |
- THE CAPACITIES ARE BASED ON ORE WITH MIXTURE OF LIGHT CLAY AND SAND. RATIO IS 1/4 SOLIDS TO LIQUID.
- THE CAPACITIES CONVERSION OF SOLIDS ARE BASED ON DENSITY OF 1.5 METRIC TONS/CUBIC METER AND 1.215 METRIC TONS/CUBIC YARD. FOR SLURRY, 1 CUBIC METER IS EQUIVALENT TO 1.30795 CUBIC YARD.
* DOVE reserves the right to modify the specifications at anytime, without prior notice.
SUPERMINER® MOBILE ALLUVIAL (PLACER) GOLD AND DIAMOND PROCESSING PLANTS
| MODEL | PRODUCT DESCRIPTION | PROCESSING CAPACITY | ||||
| SOLIDS/HOUR | SLURRY/HOUR | |||||
| TONNES | CUBIC METERS | CUBIC YARDS | CUBIC METERS | CUBIC YARDS | ||
| SDA – 10GD | MOBILE ALLUVIAL (PLACER) GOLD & DIAMOND PROCESSING PLANT | 10.0 | 6.7 | 8.2 | 40.0 | 52.3 |
| SDA – 15GD | MOBILE ALLUVIAL (PLACER) GOLD & DIAMOND PROCESSING PLANT | 15.0 | 10.0 | 12.3 | 60.0 | 78.5 |
| SDA – 25GD | MOBILE ALLUVIAL (PLACER) GOLD & DIAMOND PROCESSING PLANT | 25.0 | 16.7 | 20.6 | 100.0 | 130.8 |
| SDA – 50GD | MOBILE ALLUVIAL (PLACER) GOLD & DIAMOND PROCESSING PLANT | 50.0 | 33.3 | 41.2 | 200.0 | 261.6 |
| SDA – 80GD | MOBILE ALLUVIAL (PLACER) GOLD & DIAMOND PROCESSING PLANT | 80.0 | 53.3 | 65.8 | 320.0 | 418.5 |
| SDA – 100GD | MOBILE ALLUVIAL (PLACER) GOLD & DIAMOND PROCESSING PLANT | 100.0 | 66.7 | 82.3 | 400.0 | 523.2 |
| SDA – 120GD | MOBILE ALLUVIAL (PLACER) GOLD & DIAMOND PROCESSING PLANT | 120.0 | 80.0 | 98.8 | 480.0 | 627.8 |
| SDA – 150GD | MOBILE ALLUVIAL (PLACER) GOLD & DIAMOND PROCESSING PLANT | 150.0 | 100.0 | 123.5 | 600.0 | 784.8 |
| SDA – 170GD | MOBILE ALLUVIAL (PLACER) GOLD & DIAMOND PROCESSING PLANT | 170.0 | 113.3 | 139.9 | 680.0 | 889.4 |
| SDA – 200GD | MOBILE ALLUVIAL (PLACER) GOLD & DIAMOND PROCESSING PLANT | 200.0 | 133.3 | 164.6 | 800.0 | 1046.4 |
- THE CAPACITIES ARE BASED ON ORE WITH MIXTURE OF LIGHT CLAY AND SAND. RATIO IS 1/4 SOLIDS TO LIQUID.
- THE CAPACITIES CONVERSION OF SOLIDS ARE BASED ON DENSITY OF 1.5 METRIC TONS/CUBIC METER AND 1.215 METRIC TONS/CUBIC YARD. FOR SLURRY, 1 CUBIC METER IS EQUIVALENT TO 1.30795 CUBIC YARD.
* DOVE reserves the right to modify the specifications at anytime, without prior notice.
ADVANCED TECHNOLOGY
- Ultimate solution for highest recovery of gold, diamonds, gemstones, other metals and minerals.
- SUPERMINER® Mobile Wash Plant is designed and configured as complete and fully integrated processing line for 100% recovery of gold, diamonds, gemstones, base metals, ferrous metals, etc. on continuous basis, with recovery precision down to 40 microns (0.040 mm), (0.0016 inches) particles, with no loss.
- SUPERMINER® Mobile Processing Plants are designed with complete production security system and locking mechanism to prevent the unauthorized access and theft of the production.

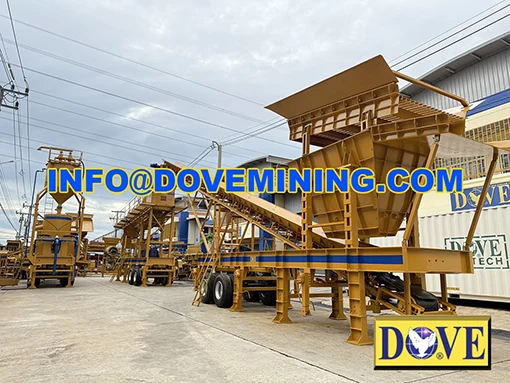

DOVE SUPERMINER® in the DOVE Factory.
MOBILE WASH PLANT ADVANTAGES:
- Economical and practical solution for recovery of gold, diamonds, gemstones, other metals and minerals.
- Rapid installation and assembly.
- Highest recovery rate down to 40 microns (0.040mm), (0.0016 inches).
- Designed to operate during dry and rainy season.
- Optional drive system, electric or diesel.
- High quality material fabrication.
WARRANTY:
All DOVE equipment carry a standard Manufacturer’s Warranty, which can be extended to 5 years, in addition to lifetime spare parts supply service.
DOVE provides full technical services worldwide, including plant engineering design, mining site construction design, site assembly, installation, test run and training.
MANUFACTURING FACILITIES:
DOVE Equipment & Machinery manufacturing facilities are located about 30 minutes drive from the company Head office in Bangkok, which includes 8 factories and showroom.
DOVE Equipment and Machinery with over 50 years manufacturing expertise, and the largest range of mining and minerals processing technologies is the recipient of ISO 9001: 2015, Green Industry Certification, and Golden Eagle of Asia Awards 2020 Best Business of the Year (DOVE Equipment and Machinery and DOVE Instruments), which insures highest quality and standard of our manufacturing and customer service practices.
DOVE Manufacturing Facilities.
DOVE Equipment and Machinery 8 Factories.
Video DOVE Manufacturing Facilities:
MINERAL TEST SERVICES:
DOVE laboratory will assay your ore samples rapidly and analyze your raw materials and recommend the most efficient processing plant according to the ore specifications, minerals composition, and ore assay results, and your project size and the geologic and topographic conditions of your mine.
Please, CONTACT US for your sample analysis and quotation.
WE HIGHLY RECOMMEND FORWARDING SOIL SAMPLES OF YOUR MINE TO US FOR ANALYSIS, IN ORDER TO DESIGN AND RECOMMEND THE MOST EFFICIENT PROCESSING PLANT, TAILOR MAID TO YOUR MINE REQUIREMENTS, FOR HIGHEST PRODUCTION RECOVERY.
