FLOATING WASH PLANTS

FLOATING MINERAL PROCESSING PLANTS

APPLICATIONS & FEATURES

Floating Wash Plant is a complete mineral gravity processing/separation plant configured with Trommel, Jig Concentrator, VBS Concentrator, Slurry and Centrifugal Pumps, and Hydraulic System for proficient and profitable river mining. All Floating Mineral Processing Plants are configured with an operating Cabin, situating all control devices in a safe and convenient location.

  • Aligned with DOVE Dredges, allows for continuous production without the need for constant material transport onshore.
  • Eliminates the need for costly earth moving equipment.
  • On time processing with minimal environmental disturbance.
  • Allows for exploitation of marginal fields, easier financing, and shorter completion periods.
  • Does not require fresh water, designed to work with river water.
  • Available in a variety of models with processing capacity range of 80 m3/hr to 1000 m3/hr of slurry feed.

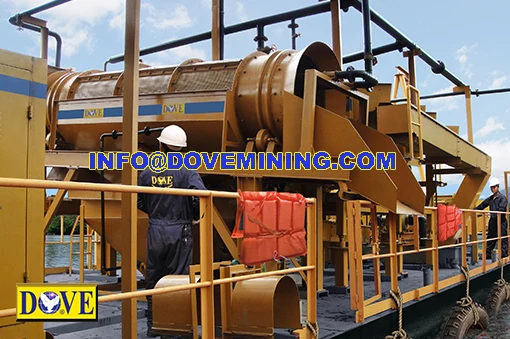

DOVE Floating Plant for river mining

EFFICIENCY:

DOVE Floating Wash Plants are designed for efficient river mining, for 100% recovery of gold, diamonds, gemstones, base metals, ferrous metals, etc. on continuous basis, with recovery precision down to 40 microns 0.040 mm), (0.0016 inches) particles, with no loss.

DOVE Floating Plant, DOVE factory

PRODUCTION SECURITY:

DOVE Floating Mineral Processing Plants are designed with complete production security system and locking mechanism to prevent the unauthorized access and theft of the production.

DOVE Floating Plant

ENVIRONMENT-FRIENDLY:

No environmental impact, chemical free, requires only recycled water.

FLOATING WASH PLANT TECHNICAL SPECIFICATIONS (GOLD)

FLOATING PLANT MODELS PRODUCT DESCRIPTION PROCESSING CAPACITY
SOLIDS / HOUR SLURRY / HOUR
CUBIC METERS CUBIC YARDS CUBIC METERS CUBIC YARDS
FP – 80G GOLD FLOATING PLANT 20 25.4 80 104.6
FP – 300G GOLD FLOATING PLANT 30-50 38.2-63.7 300 392.4
FP – 450G GOLD FLOATING PLANT 70-90 89.2-114.7 450 588.6
FP- 600G GOLD FLOATING PLANT 110-150 140.2-191.2 600 784.8
FP – 800G GOLD FLOATING PLANT 160-190 203.8-242 800 1046.3
FP- 1000G GOLD FLOATING PLANT 200-230 254.8-293 1000 1307.9

NOTE:

  • CONVERSION RATIO: ONE CUBIC METER (M3) IS EQUAL TO 1.30795 (Y3) CUBIC YARDS.

  • SOLID CAPACITY IN THE SLURRY WILL BE BASED ON THE SAND & GRAVEL CONCENTRATION PER CUBIC OF SLURRY.

FLOATING WASH PLANT TECHNICAL SPECIFICATIONS (DIAMOND)

FLOATING PLANT MODELS PRODUCT DESCRIPTION PROCESSING CAPACITY
SOLIDS / HOUR SLURRY / HOUR
CUBIC METERS CUBIC YARDS CUBIC METERS CUBIC YARDS
FP – 80D DIAMOND FLOATING PLANT 20 25.4 80 104.6
FP – 300D DIAMOND FLOATING PLANT 30-50 38.2-63.7 300 392.4
FP – 450D DIAMOND FLOATING PLANT 70-90 89.2-114.7 450 588.6
FP – 600D DIAMOND FLOATING PLANT 110-150 140.2-191.2 600 784.8
FP – 800D DIAMOND FLOATING PLANT 160-190 203.8-242 800 1046.3
FP – 1000D DIAMOND FLOATING PLANT 200-230 254.8-293 1000 1307.9

NOTE:

  • CONVERSION RATIO: ONE CUBIC METER (M3) IS EQUAL TO 1.30795 (Y3) CUBIC YARDS.

  • SOLID CAPACITY IN THE SLURRY WILL BE BASED ON THE SAND & GRAVEL CONCENTRATION PER CUBIC OF SLURRY.

FLOATING WASH PLANT TECHNICAL SPECIFICATIONS (GOLD & DIAMONDS)

FLOATING PLANT MODELS PRODUCT DESCRIPTION PROCESSING CAPACITY
SOLIDS / HOUR SLURRY / HOUR
CUBIC METERS CUBIC YARDS CUBIC METERS CUBIC YARDS
FP – 80GD GOLD & DIAMOND FLOATING PLANT 20 25.4 80 104.6
FP – 300GD GOLD & DIAMOND FLOATING PLANT 30-50 38.2-63.7 300 392.4
FP – 450GD GOLD & DIAMOND FLOATING PLANT 70-90 89.2-114.7 450 588.6
FP – 600GD GOLD & DIAMOND FLOATING PLANT 110-150 140.2-191.2 600 784.8
FP – 800GD GOLD & DIAMOND FLOATING PLANT 160-190 203.8-242 800 1046.3
FP – 100GD GOLD & DIAMOND FLOATING PLANT 200-230 254.8-293 1000 1307.9

NOTE:

  • CONVERSION RATIO: ONE CUBIC METER (M3) IS EQUAL TO 1.30795 (Y3) CUBIC YARDS.

  • SOLID CAPACITY IN THE SLURRY WILL BE BASED ON THE SAND & GRAVEL CONCENTRATION PER CUBIC OF SLURRY.

Simplicity of operation and maintenance, highly efficient, capable of effectively characterizing and recovering Diamonds, Color Gemstones, Gold, other Precious Metals, Base Metals, Ferrous Metals, and other heavy minerals.

DOVE RIVERMINER® is a combination of powerful dredge and floating processing plant exclusively designed, developed and patented, with the latest technology by DOVE, and supplied in various configurations for efficient and professional river mining operations of gold, diamonds and other metals and minerals.

RIVERMINER® Dredge and Floating Wash Plant is designed and configured as a complete and fully integrated processing line for the highest extraction and 100% recovery of gold, diamonds, gemstones, base metals, ferrous metals on continuous basis, with recovery precision down to 40 microns (0.040 mm), (0.0016 inches) particles, with no loss.

READ MORE

Angola Diamond River Mining 2019
DOVE RIVERMINER® Dredge and Floating plant: prodcution to field

DOVE RIVERMINER® river mining operation

WARRANTY:

All DOVE equipment carry a 2 years (24 months) standard Manufacturer Warranty, which can be extended to 5 years, in addition to lifetime spare parts supply service.

DOVE provides full technical services worldwide, including plant engineering design, mining site construction design, site assembly, installation, test run and training.

DOVE floating floating plant at the factory

MANUFACTURING FACILITIES:

DOVE Equipment & Machinery manufacturing facilities are located about 30 minutes drive from the company Head office in Bangkok, which includes 8 factories and showroom.

DOVE Equipment and Machinery with over 50 years manufacturing expertise, and the largest range of mining and minerals processing technologies is the recipient of ISO 9001: 2015, Green Industry Certification, and Golden Eagle of Asia Awards 2020 Best Business of the Year (DOVE Equipment and Machinery and DOVE Instruments), which insures highest quality and standard of our manufacturing and customer service practices.

DOVE Factories

DOVE Manufacturing Facilities.

DOVE Equipment factories

DOVE Equipment and Machinery 8 Factories.

Video DOVE Manufacturing Facilities:

MINERAL TEST SERVICES:

DOVE laboratory will assay your ore samples rapidly and analyze your raw materials and recommend the most efficient processing plant according to the ore specifications, minerals composition, and ore assay results, and your project size and the geologic and topographic conditions of your mine.

Please,  CONTACT US  for your sample analysis and quotation.

DOVE Minerals Assay Laboratory

WE HIGHLY RECOMMEND FORWARDING SOIL SAMPLES OF YOUR MINE TO US FOR ANALYSIS, IN ORDER TO DESIGN AND RECOMMEND THE MOST EFFICIENT PROCESSING PLANT, TAILOR MAID TO YOUR MINE REQUIREMENTS, FOR HIGHEST PRODUCTION RECOVERY.
